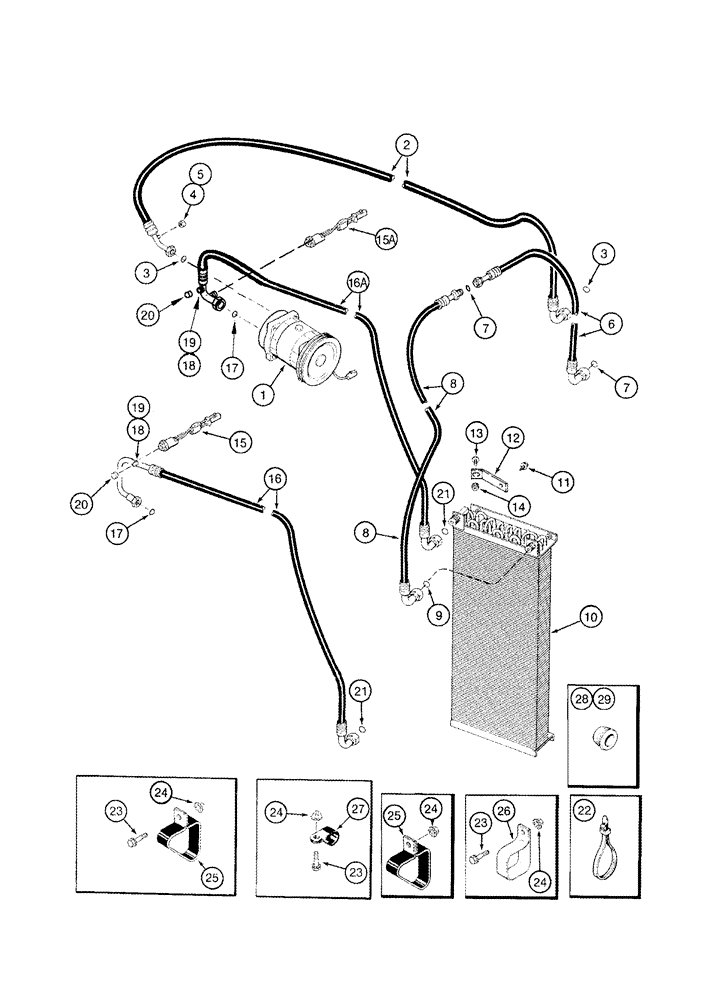

Запчасти Case IH 2344 (09G-24) - HEATER - AIR CONDITIONING - COMPRESSOR TO CONDENSER AND CAB/CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

1999755C2

COMPRESSOR

Air Conditioning, See Figure(s) 09G-25

1шт.

1

86993462R

REMAN-COMPRESSOR

2344 (1/98-1/02); Reman For New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

119749A1

HOSE

5109 mm (201-1/4 in), Inc. 3 - 5

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

4

1250594C2

CORE

Replaces 1250594C1

1шт.

5

122553A1

CAP

1шт.

6

119750A1

HOSE

4970 mm (195-3/4 in), Inc. 7

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

8

98045C3

HOSE

1560 mm (61-1/2 in), Inc. 9

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

10

84581C2

CONDENSER

1шт.

11

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

12

197432A1

SUPPORT

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

232948A1

SWITCH, A/C HIGH PRE

, Serial Range: -JJC0174359

1шт.

15a

369798A2

SWITCH

High Pressure, Start Serial: JJC0174360

1шт.

16

122435A1

HOSE

1800 mm (70-7/8 in), Inc. 17 - 21, Order 363004A1, Serial Range: -JJC0174399

1шт.

16a

363004A1

HOSE ASSY.

1650 mm (65 in), Inc. 17 - 21, Replaces 122435A1, Start Serial: JJC0174400

1шт.

17

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

18

1250594C2

CORE

Replaces 1250594C1

2шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

20

122554A1

CAP

1шт.

21

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

22

702093C1

CABLE TIE

CABLE STRAP

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

25

1994983C2

CLAMP

3шт.

26

1301387C2

CLIP

2 in ID

5шт.

27

154695C2

CLAMP

3шт.

28

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

29

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.
