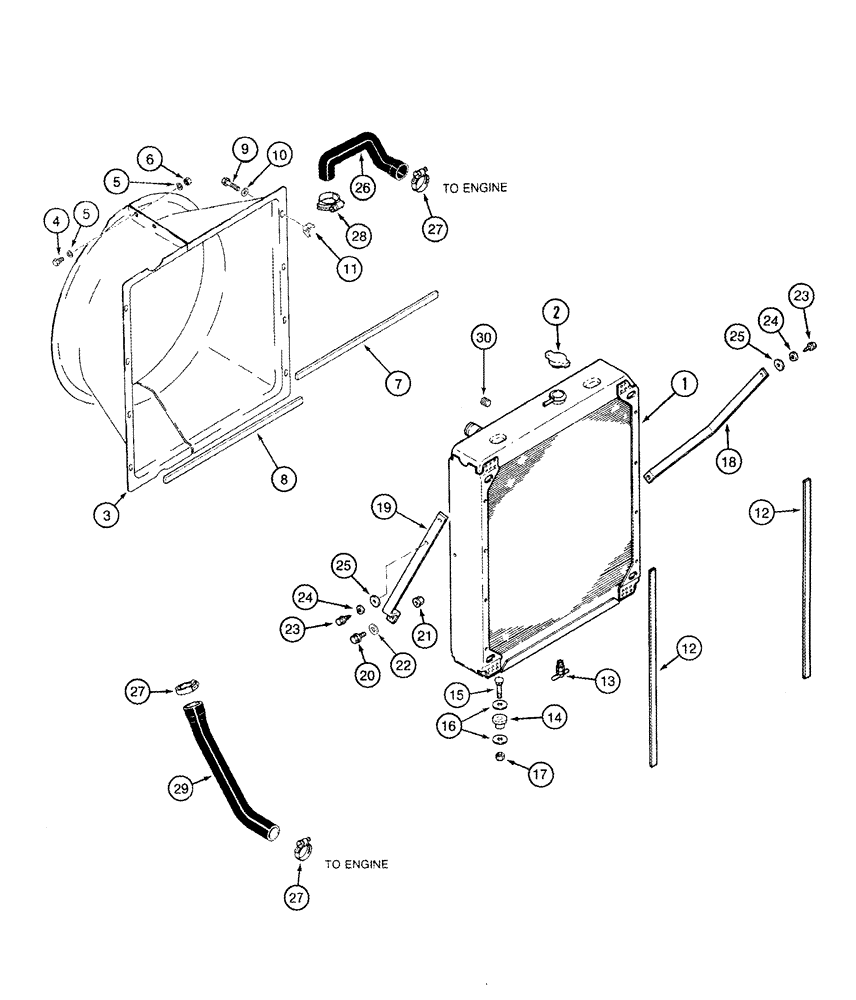

Запчасти Case IH 2344 (02-01) - RADIATOR - FAN SHROUD (01) - ENGINE

1

1547946C3

RADIATOR

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

251461A2

ORIFICE RING

Inc. 4 - 6

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

7

1970457C2

SEAL

Radiator to Shroud, Upper, Cut From 1974883CX

1шт.

8

1979476C1

SEAL

Radiator to Shroud, Lower, Cut From 1974883CX

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

10

495-81001

WASHER,5/16"

3/8 x 1-1/8 x 1/16

8шт.

11

488837C1

SPRING NUT

5/16

8шт.

13

86982771

VALVE

1/4 PT

1шт.

14

R29799

SHOCK ABSORBER

2шт.

12

1970536C1

SEAL

875 mm (34-1/2 in), Cut From 195917C1

2шт.

15

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

2шт.

16

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

17

231-1447

NUT,7/16"-14, GB

2шт.

18

1329863C1

SUPPORT

Left Hand

1шт.

19

1541868C1

SUPPORT

Right Hand

1шт.

20

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

495-81001

WASHER,5/16"

3/8 x 1-1/8 x 1/16

2шт.

26

291457A1

RADIATOR HOSE,50.80 mm ID x 265.50 mm, SAE 20R4 CLASS D1

Engine Inlet, Radiator, Upper

1шт.

27

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

3шт.

28

214-3248

HOSE CLAMP,57mm - 79mm

1шт.

29

1979373C2

LARGE HOSE

HOSE,LARGE Engine Inlet, Radiator, Lower

1шт.

30

217-86

PLUG,Hex Hd, 1/4"-18, Brass

PT

1шт.
