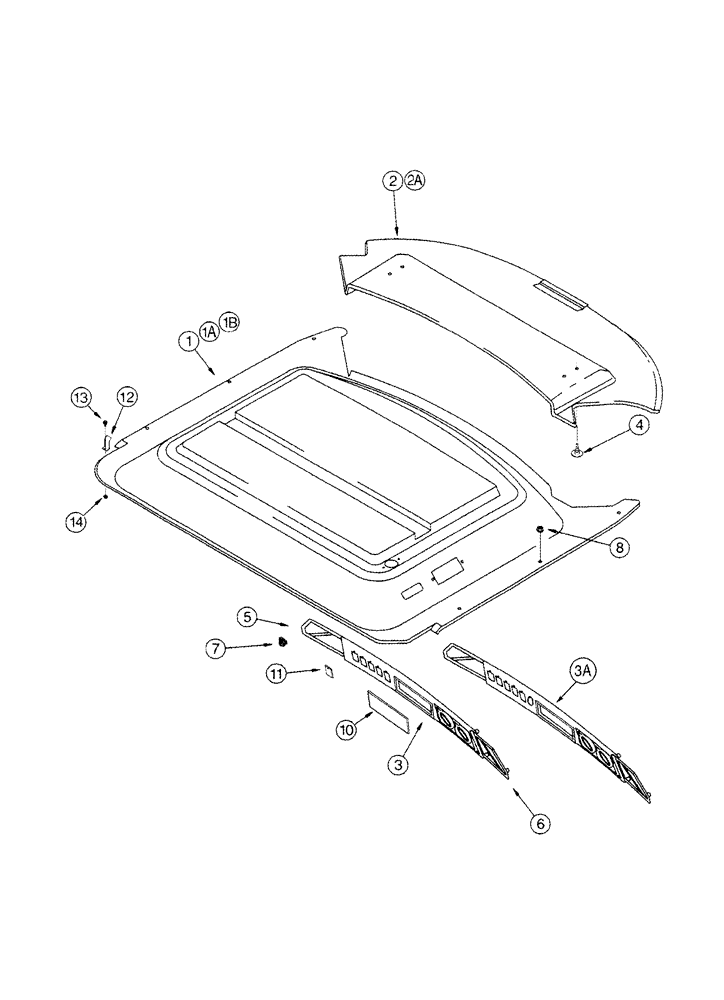

Запчасти Case IH 2344 (09G-07) - CAB - HEADLINER (10) - CAB & AIR CONDITIONING

1

121570A6

LINING

Rear, Serial Range: -JJC0174359

1шт.

1a

121570A7

ROOF LINING

Rear JJC0174360, Serial Range: -JJC0174399

1шт.

1b

121570A8

ROOF LINING

Rear JJC0174400 to

1шт.

2

121815A2

BRACKET

Front, Serial Range: -JJC0174399

1шт.

2a

121815A3

ROOF LINING

Front, Start Serial: JJC0174400

1шт.

3

136705A2

PANEL

, Serial Range: -JJC0174359

1шт.

3a

371552A1

PANEL

JJC0174360 to

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

LH

1шт.

6

1971349C2

COVER

RH

1шт.

7

97058C1

CLIP

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

10

1535219C1

COVER

1шт.

Used without A Radio

1шт.

11

245918C1

LENS

Blank Slot

1шт.

12

116812A1

CLIP

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.
