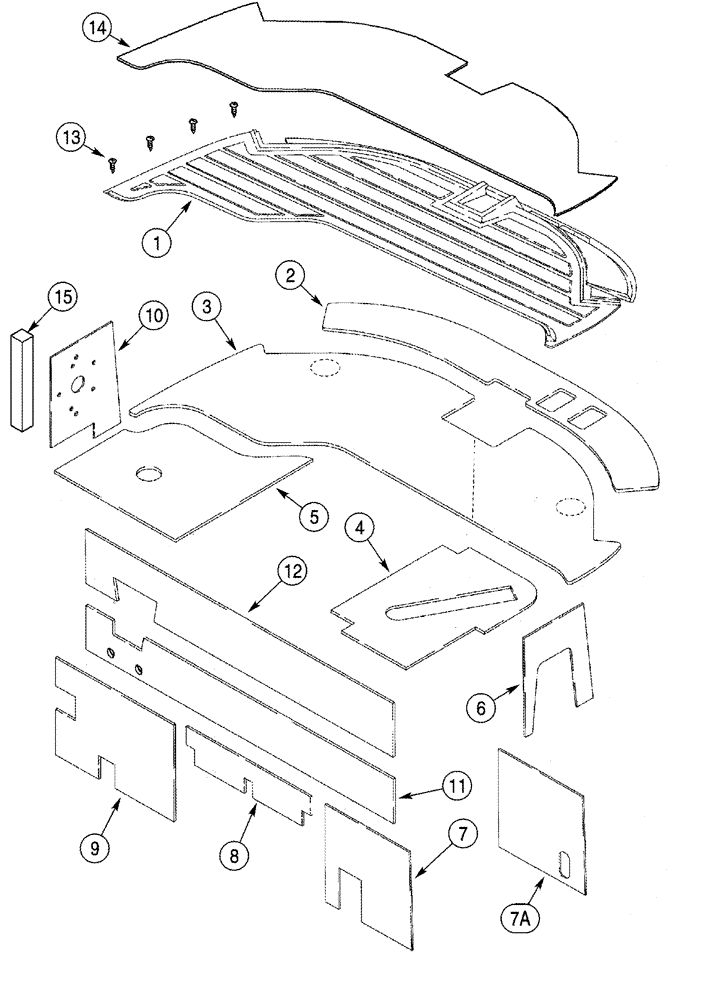

Запчасти Case IH 2344 (09G-06) - CAB - FLOOR MAT AND INSULATION (10) - CAB & AIR CONDITIONING

1

132228A1

MAT

Cab

1шт.

2

136485A1

MAT

Floor, Front

1шт.

3

136484A1

MAT

Floor

1шт.

4

125038A1

FOAM INSULATION

Floor, RH Rear

1шт.

5

125037A1

PANEL

Floor, Left Hand Rear

1шт.

6

247007A1

FOAM INSULATION

Lower RH

1шт.

7

125040A1

PANEL

Lower Right Hand Rear, No Longer Used, Order 125404A2, REF 7A

1шт.

7a

125040A2

FOAM INSULATION

1шт.

8

119486A1

FOAM INSULATION

Lower Rear Centre

1шт.

9

125041A2

INSULATOR

Lower Left Hand Rear

1шт.

9a

125041A3

FOAM INSULATION

Lower LH Rear, Not Illustrated

1шт.

10

125042A2

GASKET,6.4mm Thk

1шт.

11

137944A2

FOAM INSULATION

Center Rear

1шт.

12

137945A1

FOAM INSULATION

Upper Rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

No. 10 x 1

4шт.

14

182658A1

PROTECTOR,Cardboard

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

2шт.
