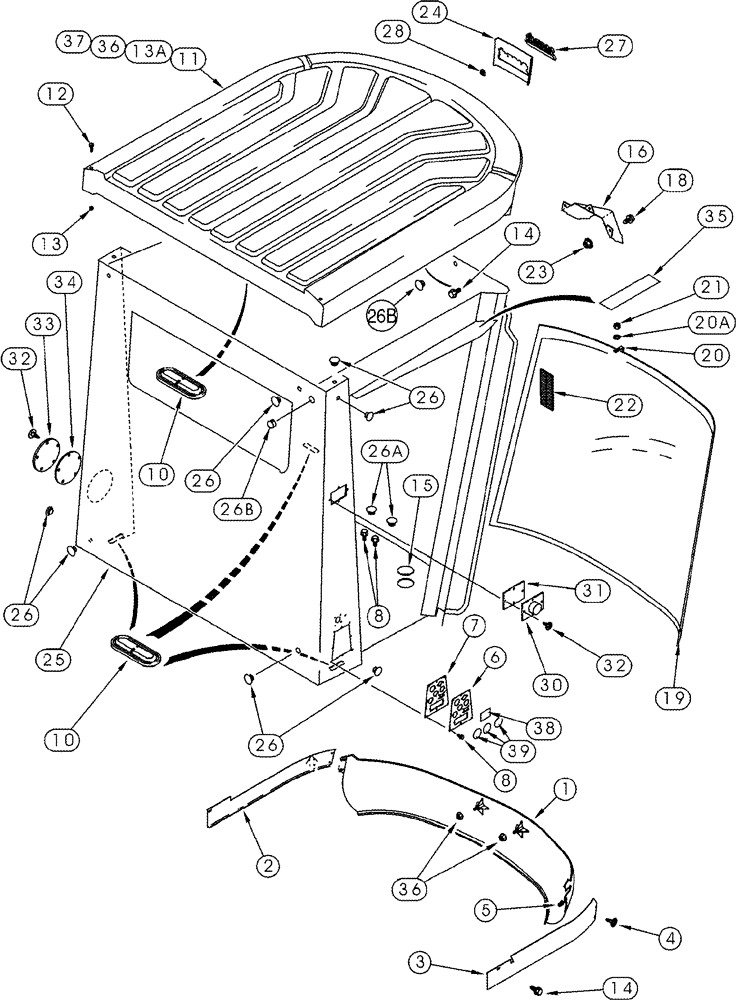

Запчасти Case IH 2344 (09G-01) - CAB - FRAME AND WINDSHIELD (10) - CAB & AIR CONDITIONING

254861A1

CAB

ROPS, Serial Range: -JJC0174259

1шт.

323280A1

CAB

ROPS, Serial Range: JJC0174260-JJC0174359

1шт.

366516A1

CAB

ROPS, Serial Range: JJC0174360-JJC0174399

1шт.

387393A1

CAB

ROPS, Start Serial: JJC0174400

1шт.

1

120140A2

COVER

Cab, Front

1шт.

2

139597A2

COVER

Cab, LH

1шт.

3

139598A3

COVER

Cab, RH

1шт.

4

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

5

60-6708T1

NUT

4шт.

6

275196A2

PLATE

For Decals, See Figure(s) 09H-24, REF 16, 17

1шт.

7

275195A2

GASKET

1шт.

8

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

10

137293A1

PLUG

4шт.

11

122819A2

ROOF

Inc. 12, 13

1шт.

12

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

230484A1

NUT

M8 - 1,25

4шт.

13a

131-648

SPRING NUT,Tinn, U, #10-24

No. 10

16шт.

14

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

9шт.

15

353-593

PLUG

2-1/2 ID, Replaces 205-128

4шт.

16

141758A3

COVER

1шт.

17

1987144C1

DECAL

Axial-Flow, Not Illustrated, See Figure(s) 09H-20

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

19

116809A5

WINDSHIELD

1шт.

20

117707A3

CLAMP

4шт.

20a

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

22

97268C1

SPACER

6шт.

23

425-104

NUT,1/4"-20, Cl 5

3шт.

24

232846A2

COVER

1шт.

25

320444A2

CHASSIS

, Serial Range: -JJC0174399

1шт.

25

320444A3

FRAME ASSY

JJC0174400 to

1шт.

26

353-402

PLUG,Dome, .375" hole, Nylon

Exterior Trim

10шт.

26a

353-400

PLUG,Dome, .250" hole, Nylon

Cab Exterior

2шт.

26b

353-411

PLUG,Dome, 1.000" hole, Nylon

Antenna Hole

2шт.

27

238638A1

EMBLEM

AFS, If Used, See Figure(s) 09H-20, REF 13

1шт.

27

186882A1

EMBLEM CASE/IH

CaseIH, If Used, See Figure(s) 09H-20, REF 13

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

30

246752A1

PLATE

RH, For Attaching Parts, See Figure(s) 09G-17

1шт.

31

247058A1

GASKET,5mm Thk

1шт.

32

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

4шт.

33

246753A1

PLATE

LH

1шт.

34

252676A1

GASKET,5mm Thk

1шт.

35

251548A1

TAPE

63,5 mm (2-1/2 in), Cut From 251550A1

3шт.

35

251549A1

TAPE

160 mm (6-1/4 in), Cut From 251550A1

1шт.

36

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

37

495-81001

WASHER,5/16"

3/8 x 1-1/8 x 1/16

2шт.

38

282857A1

DECAL

Connector Cover

1шт.

39

282855A1

DECAL

Connector Cover

1шт.
