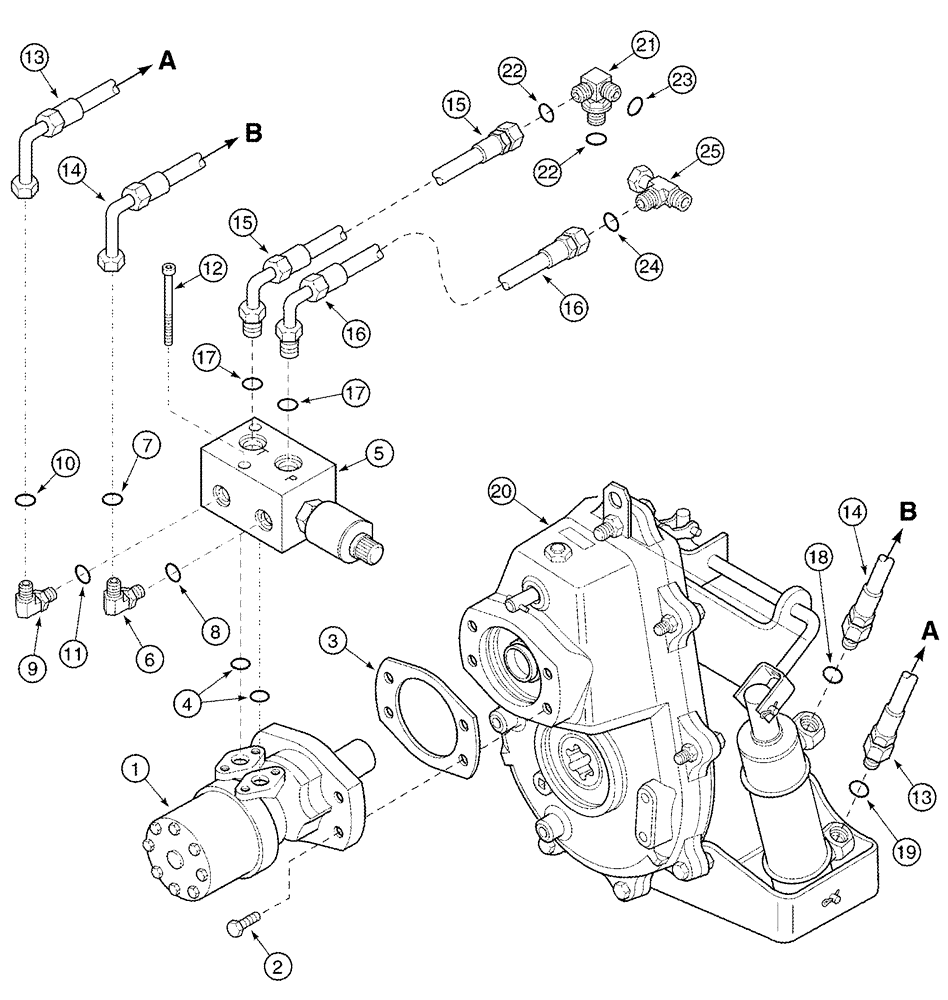

Запчасти Case IH 2344 (08-37) - HYDRAULICS - FEEDER REVERSER - ASN JJC0174400 (07) - HYDRAULICS

1

393903A1

MOTOR, HYDRAULIC,397CC

See Figure(s) 08-38

1шт.

2

380-2820

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Full Thd

1/2 x 1-1/4

4шт.

3

400998A1

GASKET,0.79mm Thk

1шт.

4

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

5

393904A1

VALVE

Feeder Reverser Motor, See Figure(s) 08-39

1шт.

6

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 7, 8

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

9

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10, 11

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

865-8085

HEX SOC SCREW,M8 x 85mm, Cl 8.8

M8 x 85

2шт.

13

391969A1

FLEXIBLE HOSE,10mm ID x 750mm L

750 mm (29-1/2 in)

1шт.

14

391970A1

FLEXIBLE HOSE,10mm ID x 610mm L

610 mm (24 in)

1шт.

15

401534A1

HOSE

610 mm (24 in)

1шт.

16

395852A2

HOSE

3200 mm (126 in), Serial Range: -JJC0174449

1шт.

16

430394A1

FLEXIBLE HOSE

3050 mm (120 in), Start Serial: JJC0174450

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

20

401134A2

GEARBOX

See Figure(s) 09A-28

1шт.

21

395408A1

TEE

Inc. 22, 23

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
