Запчасти Case IH 2344 (08-34) - HYDRAULICS - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS

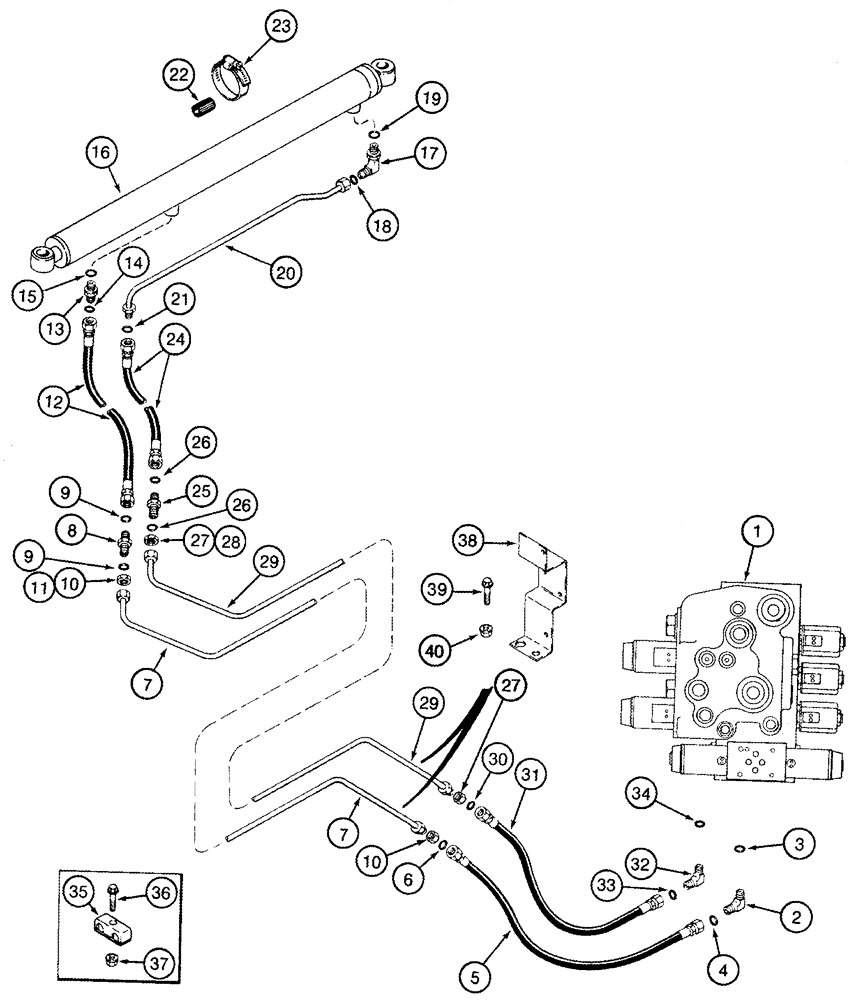

Схема запчастей Case IH 2344 - (08-34) - HYDRAULICS - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS
30
13
3
10
11
38
26
26
1
32
10
15
4
35
39
24
8
33
34
5
27
21
23
25
14
27
9
22
6
36
20
9
7
2
7
16
17
31
19
40
28
18
29
37
29
12

Артикул

Название

Примечание

Количество

1

124565A3

VALVE, CONTROL

Header Lift, See Figure(s) 08-33 - 08-34

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 3, 4

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

300718A1

TUBE,6.35mm ID x 590mm L

Unloader Tube Swing Out, At Valve

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

292406A1

TUBE,1384.5, 772.9 mm Length

Unloader Swing Out

1шт.

8

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Includes 9

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

11

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32

1шт.

12

134978A2

HOSE

540 mm (21-1/4 in), Unloader Tube Swing Out, At Cylinder

1шт.

13

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 14, 15

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

175679A2

CYLINDER

38 ID x 508 mm strk, Inc. 16A - 16C, Unloader Tube Swing

1шт.

16

87597336R

REMAN-HYD CYLINDER

2344 (1/98-1/02); Reman for New P/N 175679A2\r\n, Does not come with hyme joint rod end PN 87611478. Order as needed.

1шт.

16

87597336C

CORE-HYD CYLINDER

Return Number

1шт.

16a

188806A1

SEAL KIT

Not Illustrated

1шт.

16b

188293A1

BALL JOINT

Cylinder End, Not Illustrated

1шт.

16c

425-1510

JAM NUT,Jam, 5/8"-18, G5

Not Illustrated

1шт.

17

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 18, 19

1шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

134643A2

TUBE,430 mm Length

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

163489C1

STRIP

1/4 ID x 1-13/64

1шт.

23

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

24

134976A1

FLEXIBLE HOSE

510 mm (20-1/16 in)

1шт.

25

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

28

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

23/32 x 1-1/2 x 1/8

1шт.

29

292405A1

TUBE,1432.8, 693.6 mm Length

Unloader Swing In

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

293482A1

FLEXIBLE HOSE

Unloader Tube Swing In, At Valve

1шт.

32

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 33, 34

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

183824C1

CLAMP

2шт.

36

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

38

292407A1

SUPPORT

Unloader Tubes

1шт.

39

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

40

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
