Запчасти Case IH 2344 (08-32) - ACCUMULATOR - MOUNTING AND SYSTEM - BSN JJC0174359 (07) - HYDRAULICS

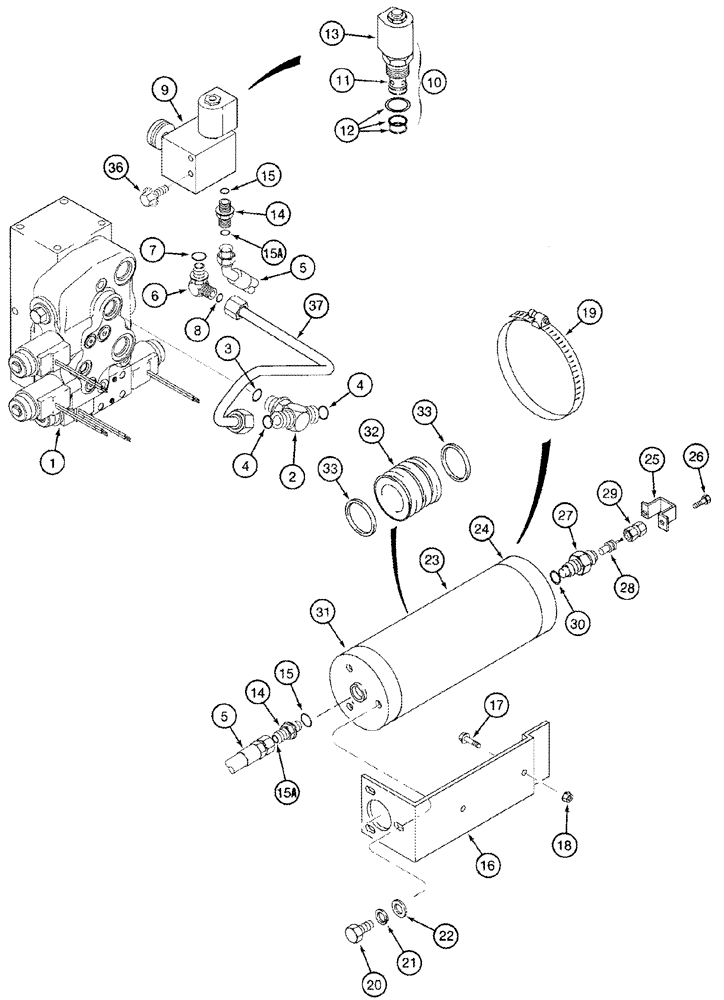

Схема запчастей Case IH 2344 - (08-32) - ACCUMULATOR - MOUNTING AND SYSTEM - BSN JJC0174359 (07) - HYDRAULICS
5
26
30
15a
3
5
18
36
15a
16
33
6
23
14
32
9
24
10
4
1
8
7
20
37
15
25
4
14
11
22
21
19
13
28
27
17
15
31
33
12
2
29

Артикул

Название

Примечание

Количество

1

124565A3

VALVE, CONTROL

Header Lift, See Figure(s) 08-33 & 08-34

1шт.

2

201-403

TEE,1"-14 x 7/8"-14 Br, ORFS

Includes Ref. 3, 4, For Attaching Parts, See Figure(s) 08-33

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

283472A1

HYDRAULIC HOSE,12.70 mm ID x 890.00 mm

Header Lift Accumulator

1шт.

6

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 7, 8

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

276035A1

VALVE

Inc. 9 - 13, 107420A1, Accumulator, Solenoid Operated

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Order 276035A1

1шт.

10

126048A1

SOLENOID

Inc. 11, 12, Poppet Type

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Solenoid, 2-Way, Order 126048A1

1шт.

12

149942C1

SEAL KIT

Poppet Solenoid Valve, Inc. (2) O-Rings and (1) Backup Ring

1шт.

13

1340843C1

SOLENOID,12V

12V

1шт.

107420A1

VALVE PRESSURE RELIE

Needle, Adjustable, Not Illustrated

1шт.

14

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 15, 15A

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

129512A1

SUPPORT

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

20

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

108276A2

ACCUMULATOR

Inc. 23 - 35

1шт.

23

NSS

NOT SOLD SEPARAT

Body, Order 108276A2

1шт.

24

NSS

NOT SOLD SEPARAT

Cap, Order 108276A2

1шт.

25

192895A1

PROTECTOR

1шт.

26

280-1356

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

No. 10 x 3/8

2шт.

192900A1

VALVE

Accumulator Charging, Inc. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

Valve, Pressure, Order 192900A1

1шт.

28

1978143C1

PISTON

1шт.

29

1978144C1

CAP

1шт.

30

1978158C1

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

Cap, Order 108276A2

1шт.

32

192894A1

PISTON

1шт.

192936A1

SEAL KIT

Inc. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

Ring, Wear, Teflon

2шт.

34

NSS

NOT SOLD SEPARAT

Ring, V-Type, Not Illustrated

1шт.

35

NSS

NOT SOLD SEPARAT

Seal, Not Illustrated

2шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

37

280155A1

HYD TUBE,0.5" OD, 232.3, 175 mm Length

Accumulator Valve to Header Lift Valve

1шт.
