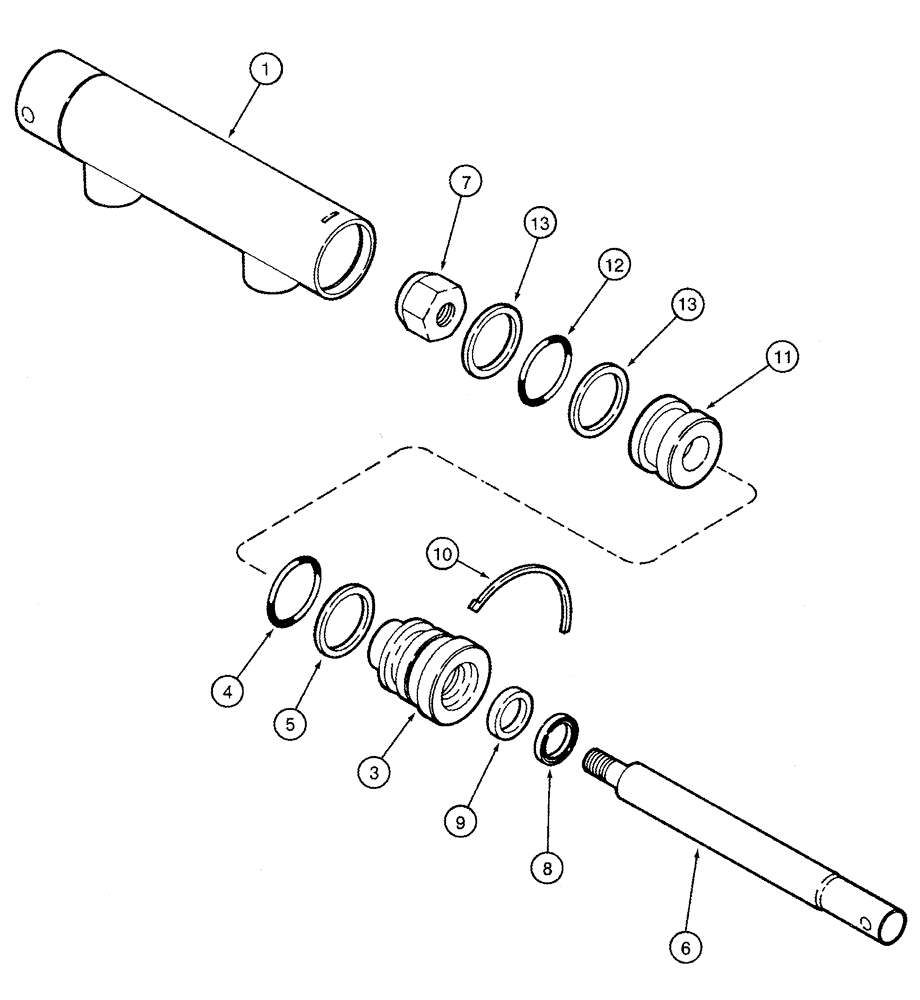

Запчасти Case IH 2344 (08-31) - CYLINDER ASSY - FEEDER CLUTCH (07) - HYDRAULICS

133405C92

CYLINDER

51 ID x 63 mm strk, Feeder Clutch, Inc. 1 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

2344 CASE IH AXIAL-FLOW COMBINE, 51 ID x 63 mm strk., Feeder Clutch (1/98-1/02), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 133405C92

1шт.

3

108641C1

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Order 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

Washer, Order 63884C92

1шт.

6

108639C1

PISTON ROD

1шт.

7

232-41110

NUT,5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

Wiper, Order 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Order 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

Wire, Order 63884C92

1шт.

11

108640C2

PISTON

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Order 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, Order 63884C92

2шт.

63884C92

SEAL KIT

Inc. 4, 5, 8-10, 12, 13

1шт.
