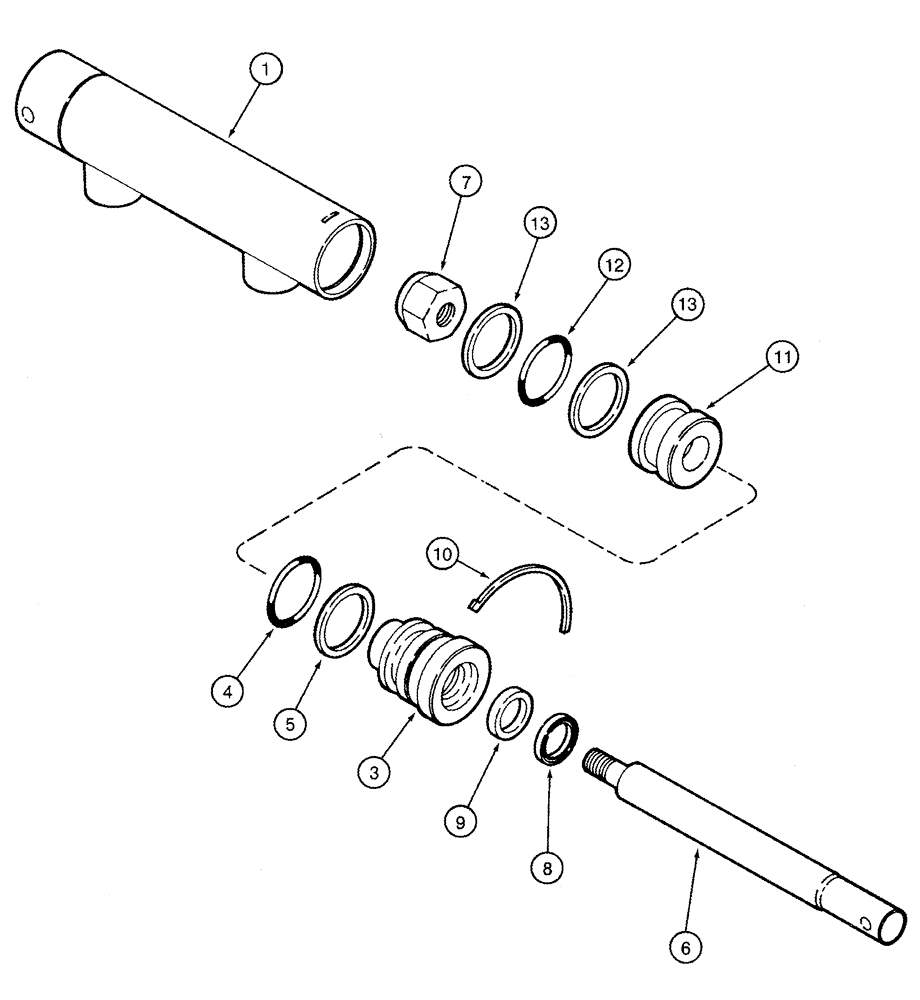

Запчасти Case IH 2344 (08-31[01]) - CYLINDER ASSY - SEPARATOR CLUTCH (07) - HYDRAULICS

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

51 ID x 318 mm strk, Separator Clutch, Inc. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 133408C92

1шт.

3

108641C1

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Order 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

Washer, Order 63884C92

1шт.

6

108639C1

PISTON ROD

1шт.

7

232-41110

NUT,5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

Wiper, Order 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Order 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

Wire, Order 63884C92

1шт.

11

108640C2

PISTON

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Order 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, Order 63884C92

2шт.

63884C92

SEAL KIT

Inc. 4, 5, 8-10, 12, 13

1шт.
