Запчасти Case IH 2344 (08-28) - HYDRAULICS - UNLOADER CLUTCH - JJC0174400 (07) - HYDRAULICS

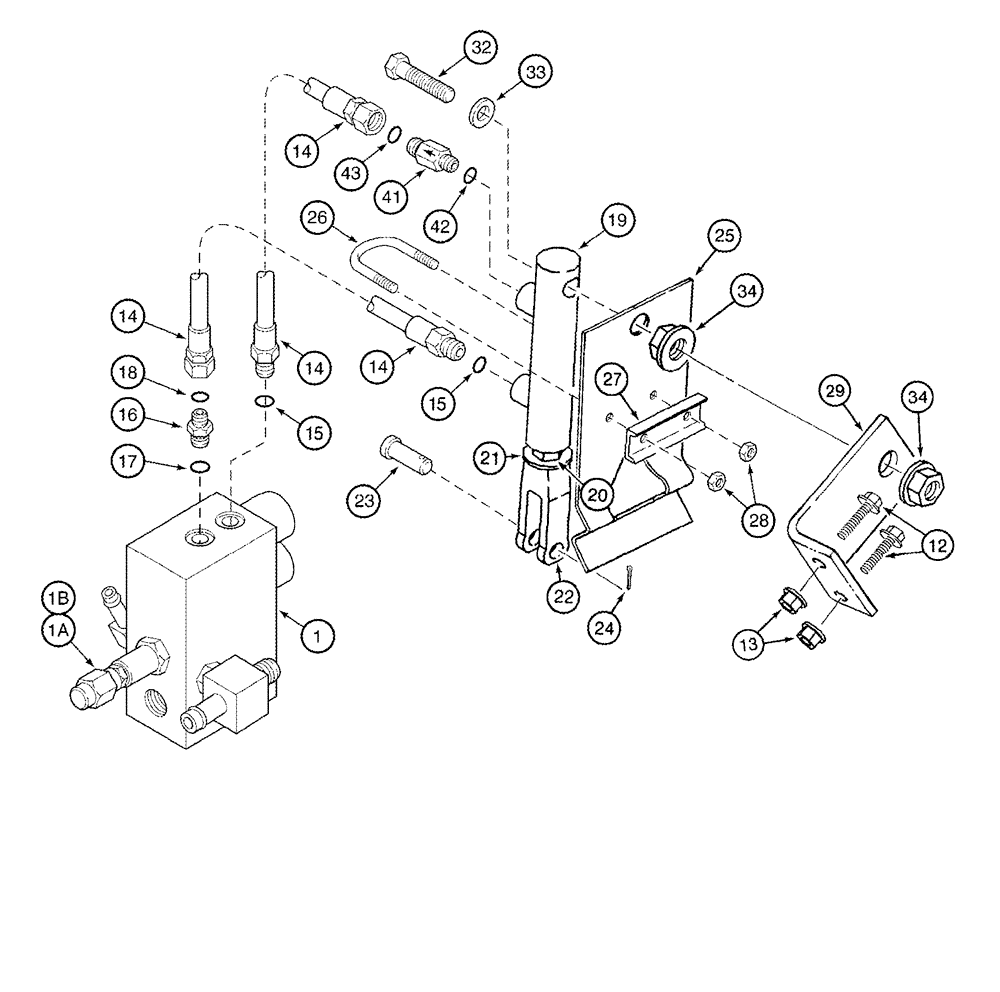

Схема запчастей Case IH 2344 - (08-28) - HYDRAULICS - UNLOADER CLUTCH - JJC0174400 (07) - HYDRAULICS
33
41
1a
15
15
20
23
27
43
14
14
17
12
18
32
34
14
25
22
21
24
19
1b
42
26
34
16
28
14
29
13
1

Артикул

Название

Примечание

Количество

1

384307A1

SOLENOID VALVE

Valve , Solenoid Includes : 1A, 1B, Pressure Regulator, See Page (s) : 8-87B

1шт.

1a

377593A1

VALVE PRESSURE RELIE

Valve , Pressure Includes : 1B, Pressure Reducing

1шт.

1b

190709A1

SEAL KIT

Package , Seals Valve Cartridge, Not Illustrated

1шт.

12

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

128068A2

FLEXIBLE HOSE

Hose 760 mm (30 in), Includes : 15, At Unloader Clutch Cylinder

2шт.

16

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 17, 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

112397A2

CYLINDER

Cylinder Assy Includes : 19A Unloader Clutch

1шт.

19a

188294A1

SEAL KIT

Package Seals Not Illustrated

1шт.

20

425-118

NUT,1/2"-20, G5

1шт.

21

189153A1

WASHER

Washer

1шт.

22

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

23

427-8136

CLEVIS PIN,1/2" x 1.360"

Pin 1/2 x 1-3/8

1шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

25

175611A2

HOLDER

Retainer

1шт.

26

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

BOLT "U" Bolt , U

1шт.

27

176023A2

SUPPORT

Bracket

1шт.

28

425-104

NUT,1/4"-20, Cl 5

2шт.

29

112947A1

SUPPORT

Bracket Unloader Valve and Cylinder Support

1шт.

32

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

33

495-11066

WASHER,5/8", SAE

Washer 21/32 x 1-5/16 x 3/32

1шт.

34

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

41

327679A1

CHECK VALVE

Valve , Check Includes : 42, 43, Inline, To Slow Unloader Engagement

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
