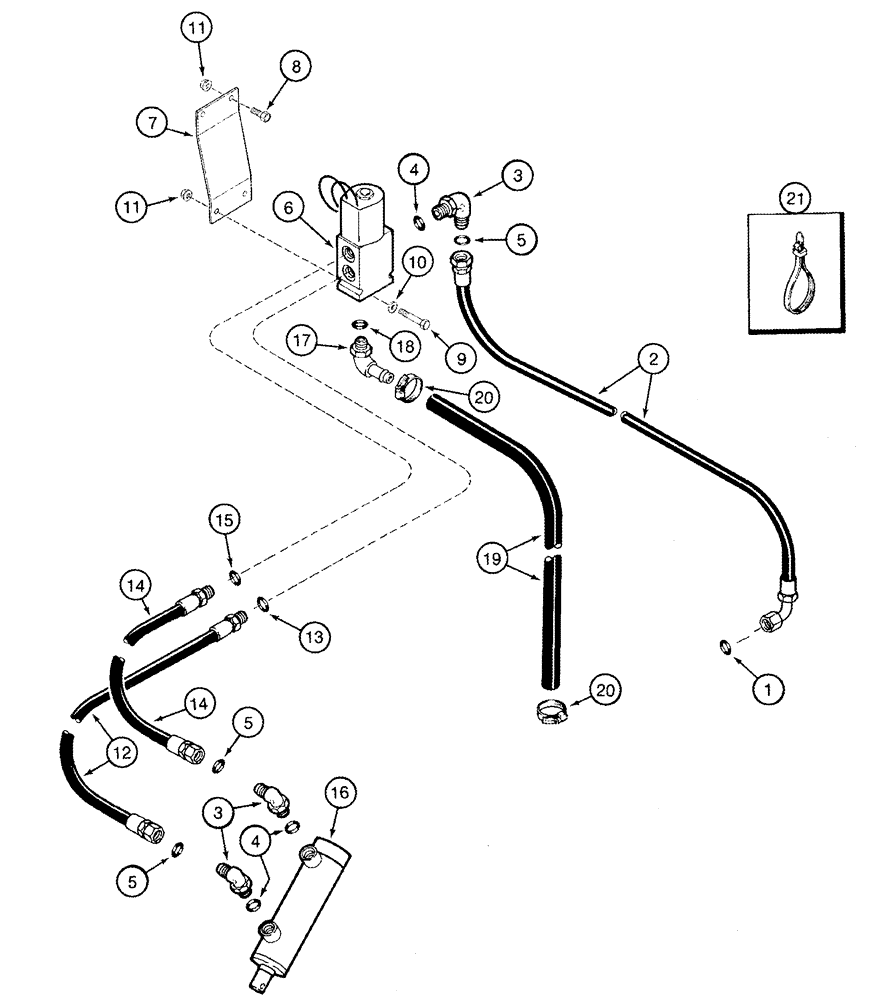

Запчасти Case IH 2344 (08-25) - HYDRAULICS - SEPARATOR CLUTCH - BSN JJC0174399 (07) - HYDRAULICS

1

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

2

128075A2

HOSE

1150 mm (45-3/8 in), Separator Clutch Valve Supply

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 4, 5

3шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

131152A1

CONTROL VALVE

Separator Clutch, See Figure(s) 08-29

1шт.

7

187506C1

SUPPORT

Separator Clutch Valve

1шт.

8

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

9

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

11/32 x 3/4 x 3/16

2шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

12

136476A1

HOSE

430 mm (17 in), Inc. 13, Separator Clutch Disengage

1шт.

14

136477A1

HOSE

535 mm (21-1/8 in), Inc. 15, Separator Clutch Engage

1шт.

16

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

51 ID x 318 mm strk, Separator Clutch, See Figure(s) 08-31 (01)

1шт.

17

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

3/8 stem x 9/16 Or, Inc. 18

1шт.

19

128078A2

HYDRAULIC HOSE,9.52 mm ID x 1090.00 mm

Cut from S118400X, Clutch Valve Return

1шт.

20

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

21

702093C1

CABLE TIE

CABLE STRAP

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
