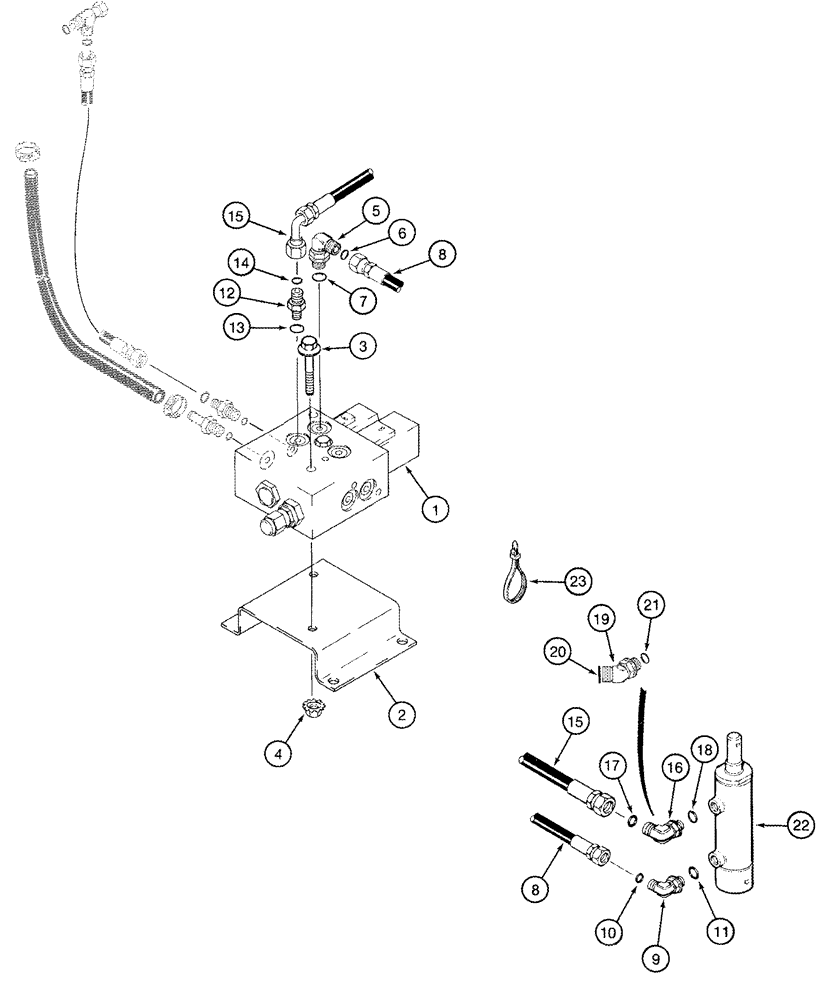

Запчасти Case IH 2344 (08-24) - HYDRAULICS - FEEDER CLUTCH (07) - HYDRAULICS

1

129010A4

CONTROL VALVE

Parking Brake And Feeder Clutch, See Figure(s) 8-18

1шт.

2

128293A1

SUPPORT

1шт.

3

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 6, 7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128047A1

HOSE

1570 mm (61-7/8 in), Feeder Clutch Cylinder Closed End

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 13, 14

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

131391A3

FLEXIBLE HOSE

1570 mm (61-7/8 in), Feeder Clutch Cylinder Rod End

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 17, 18

1шт.

Without Rock Trap

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

13/16 fc x 9/16 Or, Inc. 20, 21

1шт.

With Rock Trap

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

133405C92

CYLINDER

51 ID x 63 mm strk, Feeder Clutch, See Figure(s) 08-31

1шт.

22

87337239R

REMAN-HYD CYLINDER

2344 CASE IH AXIAL-FLOW COMBINE, 51 ID x 63 mm strk., Feeder Clutch (1/98-1/02), Reman for New PN 133405C92

1шт.

22

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
