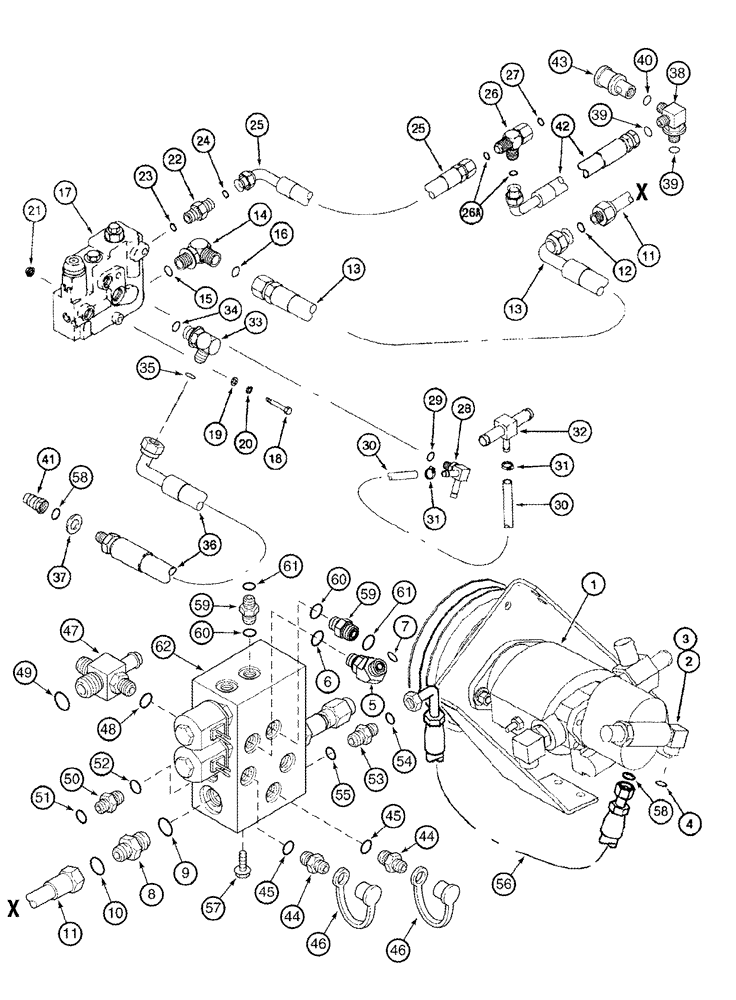

Запчасти Case IH 2344 (08-20) - HYDRAULICS - REEL DRIVE - ASN JJC0174400 (07) - HYDRAULICS

1

123266A2

PUMP, HYDRAULIC

Auxiliary, See Figure(s) 08-07, 08-08, 08-09

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16, Inc. 6, 7

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 9, 10

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

124376A1

TUBE

Reel Drive Supply

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

135827A2

FLEXIBLE HOSE

680 mm (26-7/8 in), Reel Drive Valve Supply

1шт.

14

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 Or, Inc. 15, 16

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

114856A3

CONTROL VALVE

Reel Drive, Control, See Figure(s) 08-22

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 23, 24

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

128036A1

FLEXIBLE HOSE,19.05mm ID x 640mm L

640 mm (25-1/4 in), Reel Drive Valve Return

1шт.

26

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Inc. 26A

1шт.

26a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

113896A1

TEE

Inc. 29, For Attaching Parts, See Figure(s) 07-05, REF 30

1шт.

30

128037A2

HYDRAULIC HOSE,9.52 mm ID x 405.00 mm

Reel Drive Valve Case Drain, Cut from S118400X

1шт.

31

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

32

177975A1

TEE

5/8 x 3/8 x 5/8, For Attaching Parts, See Figure(s) 08-08, REF 15

1шт.

33

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 34, 35

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

258308A1

HOSE,12.7mm ID x 3470mm L

3470 mm (136-5/8 in)

1шт.

37

1345266C1

WASHER

White

1шт.

38

395408A1

TEE

Inc. 39, 40

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

42

1989496C1

HOSE

2605 mm (102-5/8 in)

1шт.

43

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

44

1541849C1

COUPLING

Diagnostic, Inc. 45, 46

2шт.

46

H434163

DUST CAP

1шт.

47

141657A1

TEE

Inc. 48, 49

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

49

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

50

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 51, 52

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

1-14 fc x 1-1/16-12 Or, Inc. 54, 55

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

56

231735A1

FLEXIBLE HOSE,15.88mm ID x 830mm L

830 mm (32-3/4 in)

1шт.

57

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

59

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 60, 61

2шт.

61

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

62

384307A1

SOLENOID VALVE

See Figure(s) 08-30

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
