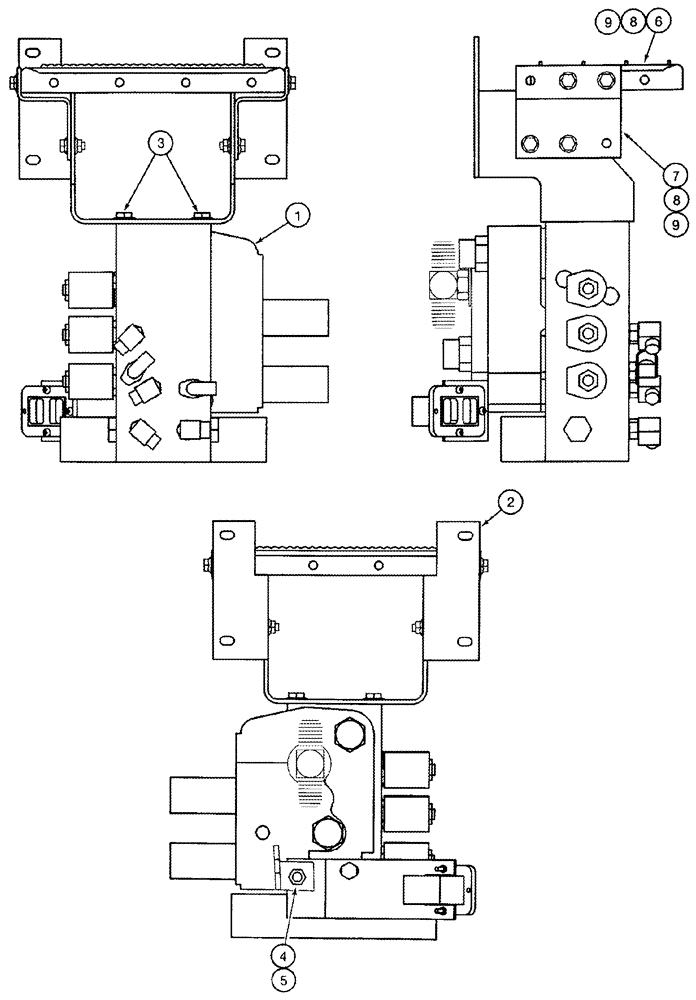

Запчасти Case IH 2344 (08-12) - VALVE, CONTROL - MOUNTING (07) - HYDRAULICS

1

124565A3

VALVE, CONTROL

Valve , Control Header Lift, See Page(s) 8-41 - 8-45 If Used

1шт.

1

124566A3

VALVE, CONTROL

Valve , Control Header Lift With Reel Fore and Aft, See Page(s) 8-49 , 8-51 If Used

1шт.

1

124567A3

VALVE, CONTROL

Valve , Control Header Lift With Reel Fore and Aft and Field Tracker, See Page(s) 8-53 , 8-55 If Used

1шт.

1

124567A3R

REMAN-HYD VALVE

Reman Valve , Control Header Lift With Reel Fore and Aft and Field Tracker, See Page(s) 8-53 , 8-55 If Used

1шт.

1

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

2

123883A4

SUPPORT

Bracket Replaces : 123883A3

1шт.

3

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

4

127379A1

SUPPORT

Support Valve, Rear, Mounts to Tube Clamp Support Bolt

1шт.

6

1531337C1

STEP

Step Service, At Valve Mounting Bracket, Front Grain Tank Inspection, For Additional Mounting, See Page 9E-11

2шт.

7

141410A1

SUPPORT

Support

2шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

16шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

100-1531

SNAP RING,#31, Ext

4шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

See Page 8-43, For Mounting Stud

1шт.
