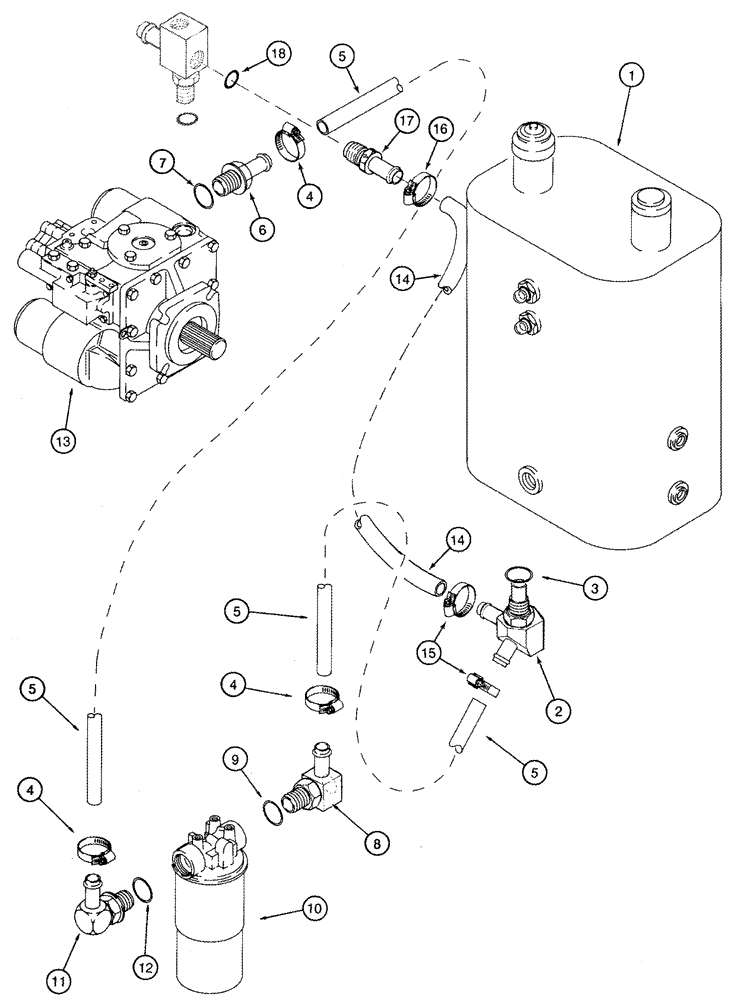

Запчасти Case IH 2344 (08-02) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP (07) - HYDRAULICS

1

123413A3

TANK, HYDRAULIC OIL

See Figure(s) 08-01, 08-05

1шт.

2

182812A1

TEE

Inc. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

5

1541688C1

FLEXIBLE HOSE

Charge Pump Suction, 26 inch (660 mm) long, Cut From 1541953C1

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

123522A1

FITTING

Inc. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

87784C92

HYDRAULIC OIL FILTER

Charge Pump, See Figure(s) 08-03

1шт.

11

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

Pump Assy, Hydrostatic, See Figure(s) 06-07 - 06-10

1шт.

14

1347315C3

HYDRAULIC HOSE,1.00" ID x 26.00"

Tee to Cooler Bypass Valve, Cut From 364361C1

1шт.

15

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

16

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

17

123487A1

VALVE

40 psi, Inc. 8

1шт.

18

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
