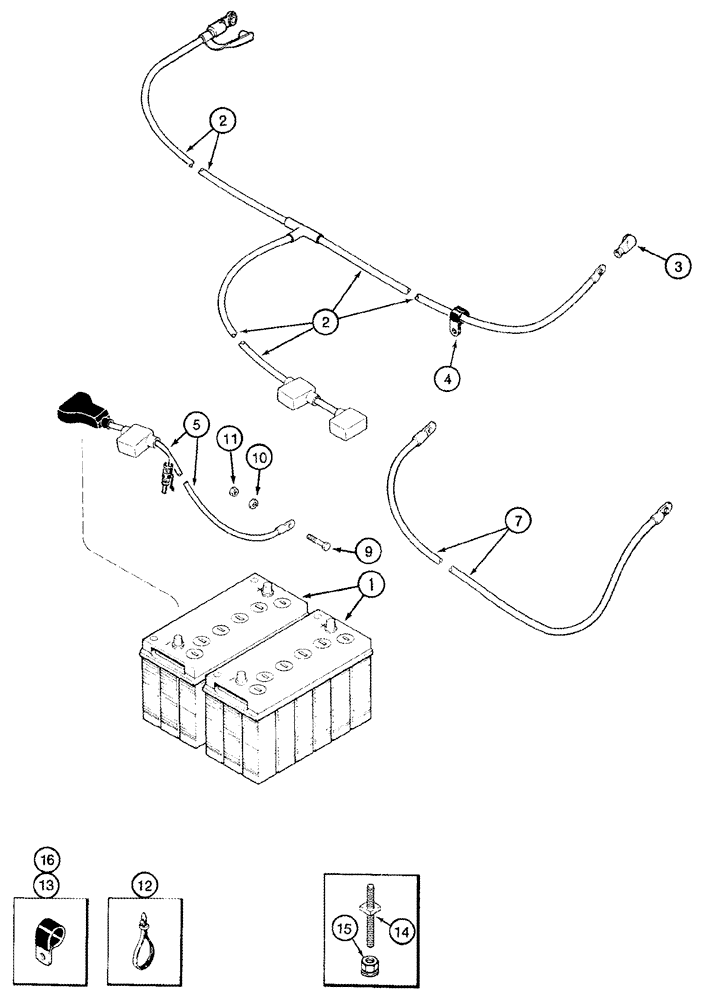

Запчасти Case IH 2344 (04-36) - BATTERY - CABLES (06) - ELECTRICAL

1

BMF31E

DRY BATTERY

12V

2шт.

2

278034A2

CABLE

Positive, Inc. 3

1шт.

3

S115407

BOOT

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

Replaces 515-232

16шт.

5

278043A1

NEG BATTERY CABLE

Ground

1шт.

7

128742A2

NEG BATTERY CABLE

Engine Ground

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

5шт.

14

128289A1

BOLT,5/16" - 18 x 2 3/16"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

2шт.
