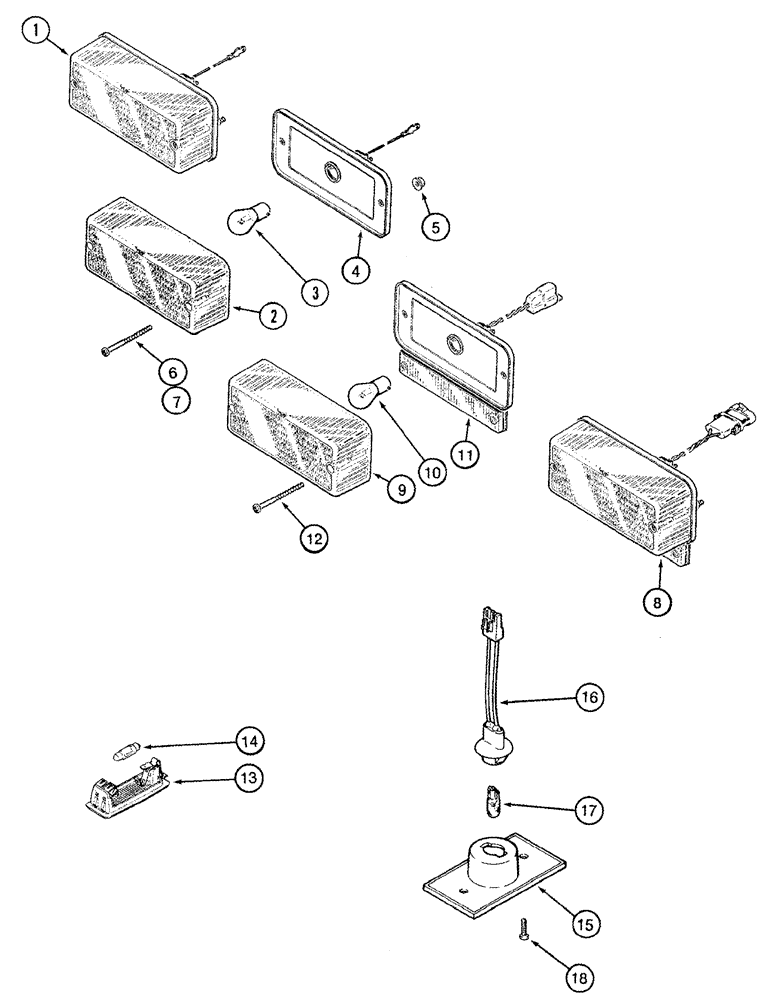

Запчасти Case IH 2344 (04-33) - LAMP ASSYS - TRANSMISSÃO E DISPERSÃO, WARNING LAMP ASSEMBLY (06) - ELECTRICAL

1

130882C91

LAMP

Lamp , Warning Consists Of : 2 - 4

4шт.

2

130883C1

LENS

Lens Amber

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

Plate

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

6

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

Screw No. 10 x 2-1/4

4шт.

7

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

Screw No. 10 x 2-1/4

4шт.

8

92260C1

LAMP,12V, 27W, Red

Lamp Consists Of : 9 - 11 STOP AND TAIL ASSEMBLY

2шт.

9

216045C1

LENS

Lens Red STOP AND TAIL LAMP ASSEMBLY

1шт.

10

T34857

BULB,C6, #1157, 12.8V

Stop and Tail Lamp Assy

1шт.

11

NSS

NOT SOLD SEPARAT

Plate STOP AND TAIL LAMP ASSEMBLY

1шт.

12

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

Screw No. 10 x 2-1/4, STOP AND TAIL LAMP ASSEMBLY

4шт.

13

429726A1

COURTESY LIGHT

DOME LIGHT Lamp , Interior Includes : : 14 DOME ASSEMBLY

2шт.

14

E35556

BULB,12V, 10W

Dome Lamp Assy

1шт.

83882C91

LAMP

Lamp Consists Of : 15 - 17 CONSOLE ASSEMBLY

1шт.

15

NSS

NOT SOLD SEPARAT

Lens CONSOLE LAMP ASSEMBLY

1шт.

16

107329C1

WIRE HARNESS

Socket CONSOLE LAMP ASSEMBLY

1шт.

17

D71346

TAIL LAMP,12V

Bulb No. 168 CONSOLE LAMP ASSEMBLY

1шт.

18

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

Console lamp assy

2шт.
