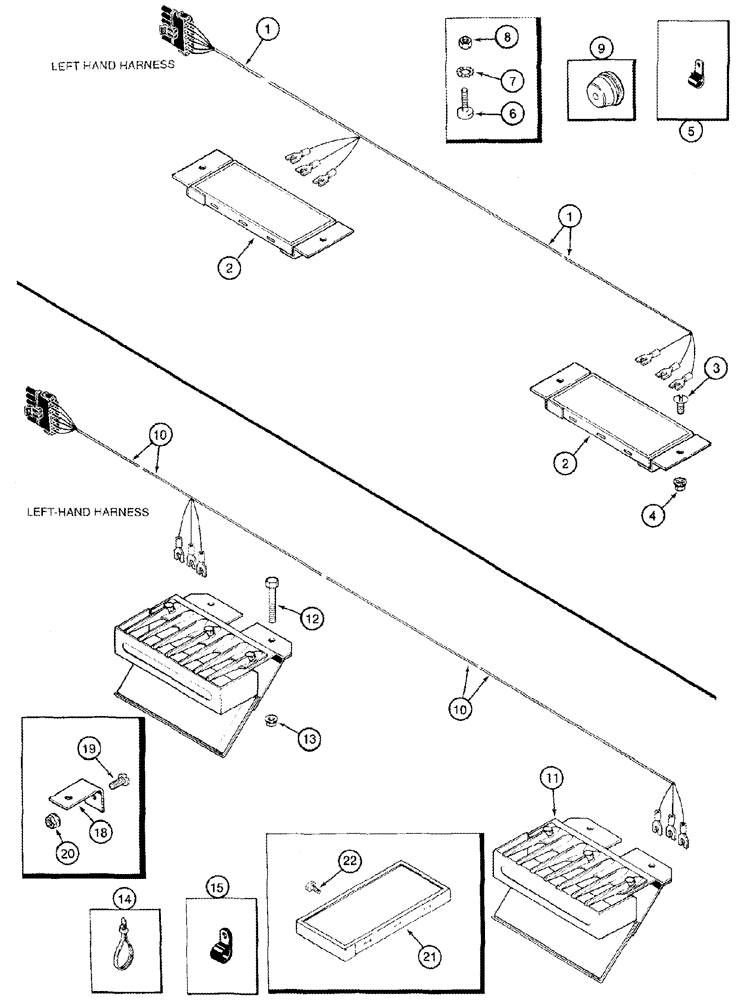

Запчасти Case IH 2344 (04-28) - HARNESS - CHAFFER AND ROTOR ROTOR SENSOR HARNESS (06) - ELECTRICAL

1

127831A2

WIRE HARNESS

Harness Rotor Sensor

1шт.

2

245362C1

TRANSMITTER

Block Assy Includes : 2A

2шт.

2a

245884C1

TRANSMITTER

Block Not Illustrated

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

8шт.

6

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

Screw No. 6 x 5/8, Rotor Pad Mounting Hardware

4шт.

7

493-11014

LOCK WASHER,Ext-Int Tooth, #6

Washer , Lock 1/8, Rotor Pad Mounting Hardware

4шт.

8

225-14106

NUT,#6-32

Rotor pad mounting hardware

4шт.

9

195806C1

GROMMET

Grommet 3/4 ID

1шт.

10

92047C1

HARNESS

Harness Chaffer Sensor, Standard (Short) Chaffer

1шт.

11

245361C2

TRANSMITTER

Block Assy Includes : 11A, 11B CHAFFER SENSOR HARNESS

2шт.

11a

245884C1

TRANSMITTER

Block Not Illustrated CHAFFER SENSOR HARNESS

1шт.

11b

231000A1

SIEVE

Sieve , Grain Not Illustrated CHAFFER SENSOR HARNESS

1шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Chaffer Sensor Harness

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Chaffer Sensor Harness

8шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Chaffer Sensor Harness

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Chaffer Sensor Harness

1шт.

15

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

Clamp 1/4 ID CHAFFER SENSOR HARNESS

2шт.

18

1301242C1

BRACKET

Angle CHAFFER SENSOR HARNESS

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Chaffer Sensor Harness

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Chaffer Sensor Harness

1шт.

21

245884C1

TRANSMITTER

Block GRAIN SCAN SENSOR

1шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

Screw No. 10 x 3/8 GRAIN SCAN SENSOR BLOCK

4шт.
