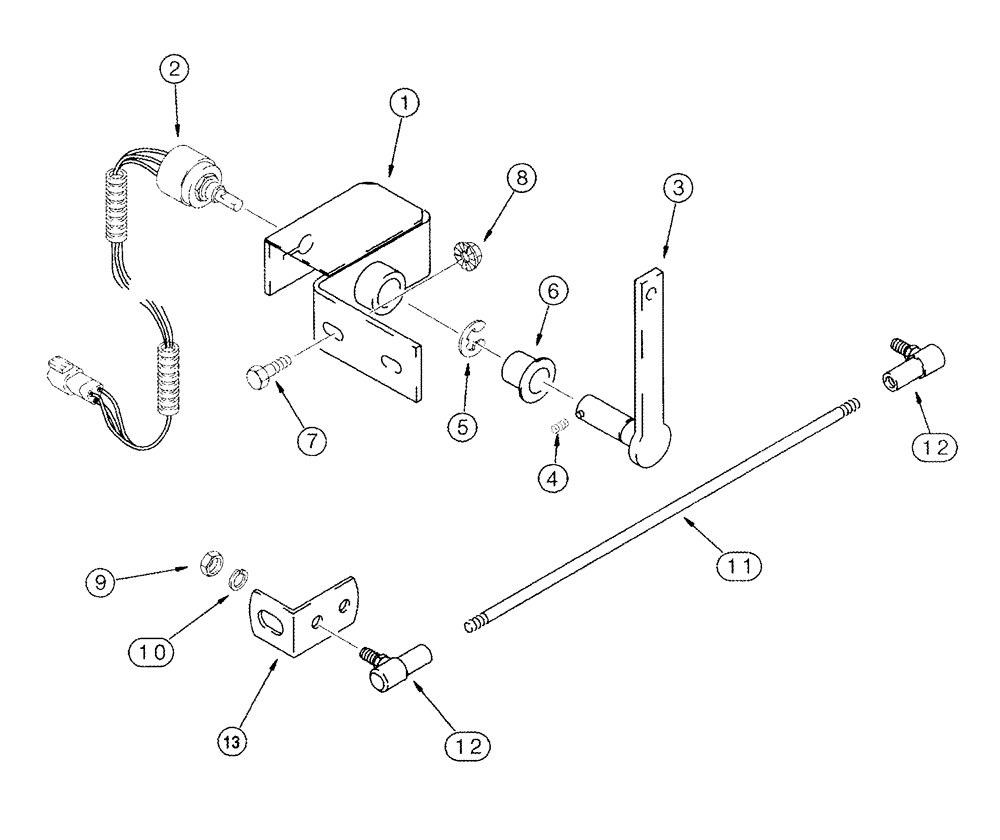

Запчасти Case IH 2344 (04-25) - POTENTIOMETER, FEEDER POSITION - MOUNTING (06) - ELECTRICAL

NSS

NOT SOLD SEPARAT

Potentiometer Assy, Yield Monitor, Right Hand, Inc. 1 - 6, No Longer Used, Replaces 226071A2, Order 239136A1, See Figure 4-26

1шт.

NSS

NOT SOLD SEPARAT

Potentiometer Assy, Return To Cut, Left Hand, Inc. 1 - 6, No Longer Used, Replaces 143220A3, Order 238459A1, See Figure 4-26

1шт.

1

NSS

NOT SOLD SEPARAT

Support

1шт.

2

NSS

NOT SOLD SEPARAT

Potentiometer, Feeder Position

1шт.

3

NSS

NOT SOLD SEPARAT

Lever

1шт.

4

NSS

NOT SOLD SEPARAT

Screw

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing

1шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

9

425-114

NUT,1/4"-28, G5

4шт.

10

492-11025

LOCK WASHER,1/4"

2шт.

11

127474A1

STUD

1/4 NF x 6-1/2

1шт.

12

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

2шт.

13

127308A2

SUPPORT

1шт.
