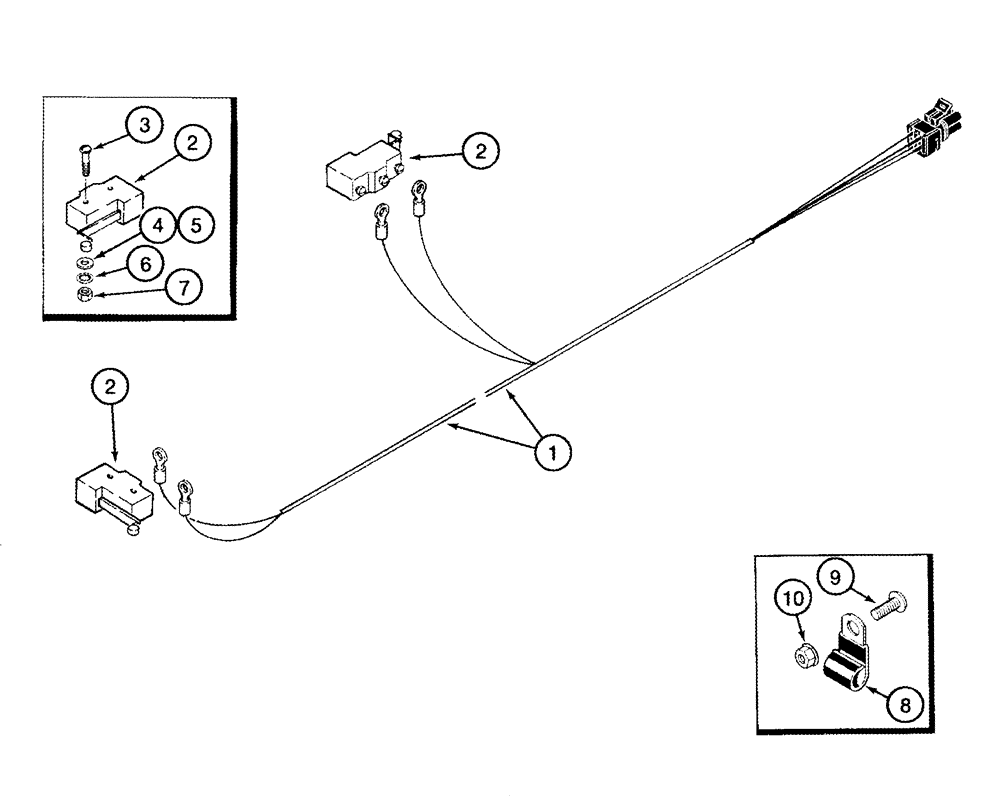

Запчасти Case IH 2344 (04-20) - HARNESS - ROTOR LIMIT SWITCH (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

Rotor Limit Switch

1шт.

2

128298A2

MECHANICAL SWITCH

Rotor Limit

2шт.

3

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

4

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

17/64 x 3/4 x 1/16

2шт.

5

495-31016

WASHER,#6

2шт.

6

138526

LOCK WASHER

No. 6

4шт.

7

225-14106

NUT,#6-32

4шт.

8

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.
