Запчасти Case IH 2344 (04-16) - HARNESS, LEFT HAND SIDE (06) - ELECTRICAL

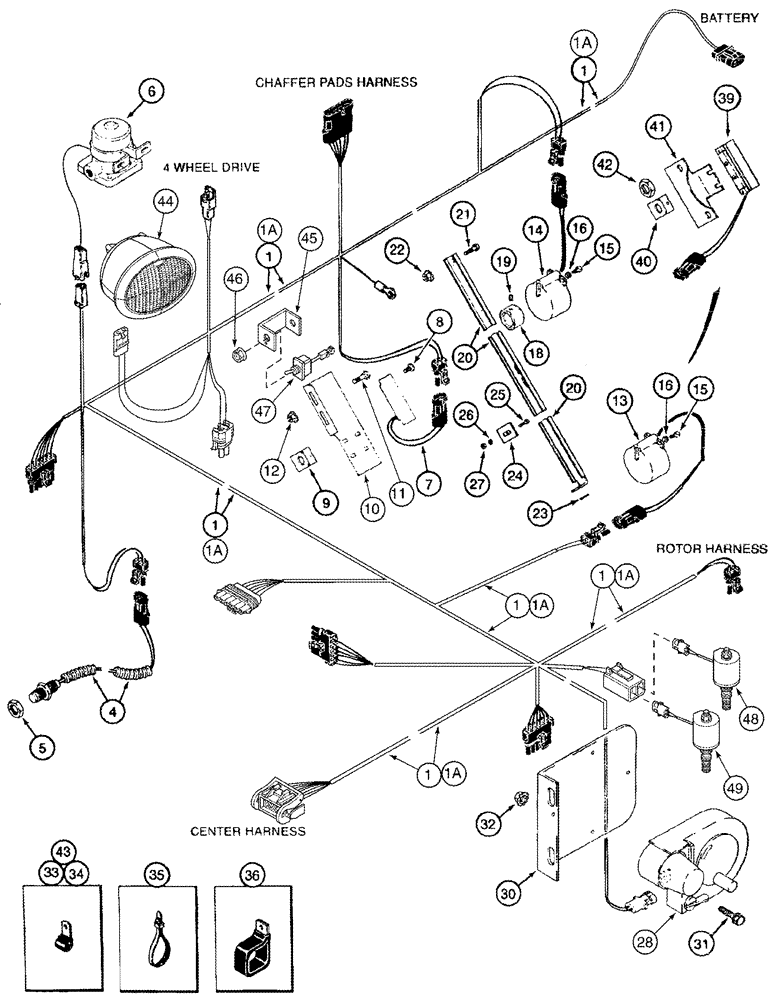

Схема запчастей Case IH 2344 - (04-16) - HARNESS, LEFT HAND SIDE (06) - ELECTRICAL
25
22
1a
1
39
33
20
1a
8
34
4
1
16
35
1a
15
41
16
1
1a
1a
5
11
20
14
1a
47
28
19
40
9
30
43
13
1
24
42
12
10
32
1
31
48
46
23
15
27
6
26
7
44
18
49
36
1
45
21

Артикул

Название

Примечание

Количество

1

276602A1

WIRE HARNESS

Left Hand Side, Inc. 2, 3, Serial Range: -JJC0174399

1шт.

1a

388316A3

WIRE HARNESS

Left Hand Side, Inc. 2, 3 JJC0174400 to

1шт.

2

187308A1

CAP

Not Illustrated

3шт.

3

187309A1

BAR

Splice, Not Illustrated

3шт.

4

1252494C2

TRANSMITTER

Engine RPM

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

2шт.

6

302867A1

FUEL PUMP

Fuel, See Figure(s) 03-06, REF 17, 17A

1шт.

7

245364C1

SWITCH

Monitor Control, Shoe Speed

1шт.

8

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

9

187996C1

MAGNET

Shoe Sensor

1шт.

10

187998C3

BRACKET

Sensor

1шт.

11

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

1345485C3

TRANSMITTER

Beater

1шт.

14

1345482C3

TRANSMITTER

Tailings Elevator Speed

1шт.

15

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

No. 8 x 3/8

4шт.

16

492-11008

LOCK WASHER,#8

4шт.

18

455102R21

COLLAR

Inc. Set Screww

1шт.

19

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1/4 x 1/2

1шт.

20

116892A1

CHANNEL

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

23

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

24

1301560C1

SUPPORT

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

492-11031

LOCK WASHER,5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

1шт.

28

127813A1

LAMP

Service, Left Hand, Inc. 29

1шт.

29

P40556

BULB,12V, 10W

12V, Not Illustrated

1шт.

30

139049A2

SUPPORT

LH

1шт.

31

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

4шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

33

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

36

1301387C2

CLIP

2 in ID

3шт.

37

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Illustrated

3шт.

38

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

3шт.

39

245410C1

TRANSMITTER

Straw Chopper

1шт.

40

178799C1

CLAMP,44.45mm - 63.5mm

Sensor

1шт.

Use with 245410C1

1шт.

41

144706A4

SUPPORT

1шт.

With Straw Chopper

1шт.

42

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

43

362666R1

CLIP

2шт.

44

402850A1

WORK LAMP,Halogen, 12V, 37W, Clear

Separator, See Figure(s) 04-35, Start Serial: JJC0174400

1шт.

45

391064A2

BRACKET

JJC0174400 to

1шт.

46

231-5346

FLANGE NUT,Flg, 3/8"-16

, Start Serial: JJC0174400

1шт.

47

391062A1

SWITCH

JJC0174400 to

1шт.

48

REF

INSTRUCTION

Solenoid, Separator Clutch, See Figure(s) 08-29, Start Serial: JJC0174400

1шт.

49

REF

INSTRUCTION

Solenoid, Unloader Clutch, See Figure(s) 08-29, Start Serial: JJC0174400

1шт.

426155A1

KIT

Sieve Light / Viewing Door, Inc. 44, 45, 47, Also Inc. 121410 (1), 418671A1 (1), 418672A1 (1), See Figure(s) 09H-02, 09H-22 (01), 09H-23

1шт.

Used to retrofit machines built Prior to P.I.N. JJC0174359

1шт.
