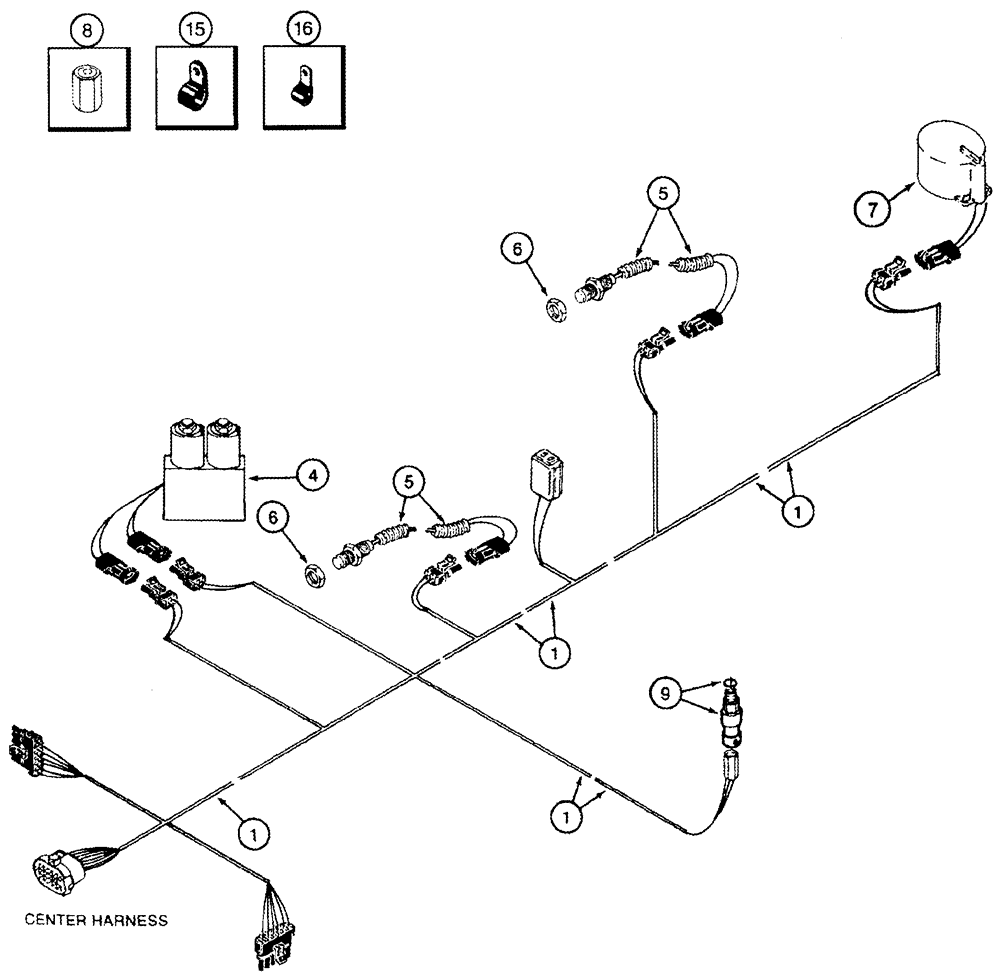

Запчасти Case IH 2344 (04-15) - HARNESS, LOWER (06) - ELECTRICAL

1

243187A1

WIRE HARNESS

Lower, Inc. 2, 3

1шт.

2

187308A1

CAP

Not Illustrated

2шт.

3

187309A1

BAR

Splice, Not Illustrated

2шт.

4

129010A4

CONTROL VALVE

Parking Brake And Feeder Clutch, See Figure(s) 08-18

1шт.

5

245193C2

SENSOR

Ground Speed, Fan Speed

2шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

2шт.

7

1345482C3

TRANSMITTER

Clean Grain Speed

1шт.

8

106666A1

SPECIAL NUT

3/8

1шт.

9

122761A1

SENSOR

Header Float Pressure, See Figure(s) 08-11

1шт.

15

92386C1

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

16

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

6шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Illustrated

2шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

3шт.
