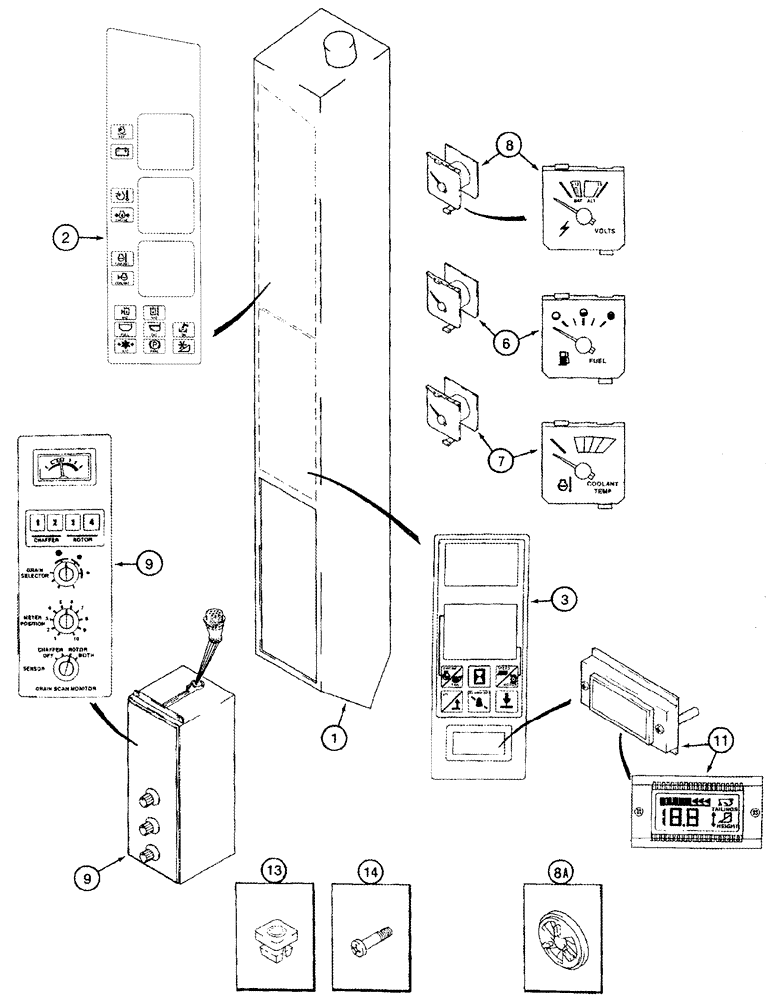

Запчасти Case IH 2344 (04-14) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL

257612A2

INSTRUMENT PANEL

Inc. 1 - 8B, 11

1шт.

257612A2R

REMAN-INSTR CLUSTER

2344 (1/98-1/02)

1шт.

257612A2C

CORE-MODULE

Return Number

1шт.

84221313R

REMAN-INSTR CLUSTER

2344 (1/98-1/02), Reman for New PN 257612A2

1шт.

84221313C

CORE-CLUSTER, INSTR

Return Number

1шт.

257612A1C

CORE-MODULE

CORE-MODUL Return Number, MODULE - for N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

Panel

1шт.

2

238210A1

DECAL

Gauge And Warning, See Figure(s) 09H-24

1шт.

3

123716A1

DECAL

Instrument Panel

1шт.

4

A48888

BULB

Not Illustrated

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb, Not Illustrated

6шт.

6

142825A1

FUEL GAUGE

Fuel

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

Voltmeter

1шт.

8a

195359A1

SHUTTER

Audible Warning Alarm

1шт.

8b

1546441C1

BUZZER

Audible Warning Alarm, Not Illustrated

1шт.

9

110862A1

CONTROL MONITOR

Grain Scan, Inc. 10

1шт.

10

A48888

BULB

Not Illustrated

1шт.

11

123715A1

DISPLAY

Height, Incl. 12

1шт.

12

121615A1

LAMP SOCKET

Inc. Bulb, Not Illustrated

2шт.

13

R53000

GROMMET

2шт.

14

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

15

200720002

KNOB

Control Monitor (Not Shown)

3шт.
