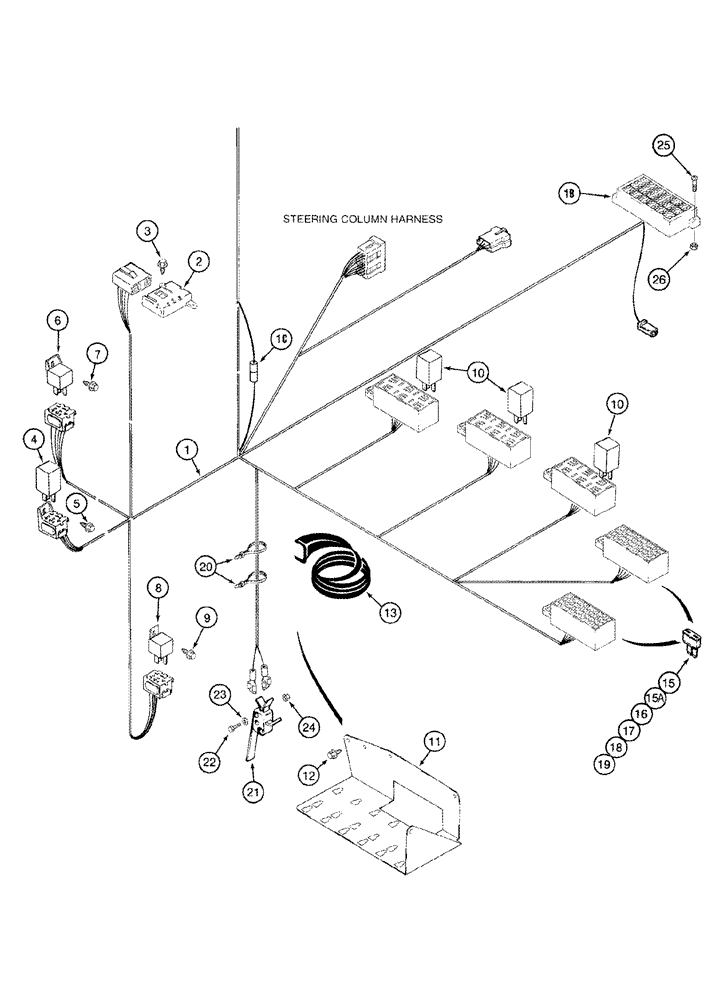

Запчасти Case IH 2344 (04-12) - HARNESS - CAB, RELAY AND FUSE (06) - ELECTRICAL

1

276603A2

WIRE HARNESS

Cab, Inc. 2, 2A (04-23); 2, 3 (04-27); 1B, 1C (04-31), Serial Range: -JJC0174259

1шт.

With Overhead Circuit Breaker Panel

1шт.

1a

315073A1

WIRE HARNESS

Cab, Inc. 2, 2A (04-23); 2, 3 (04-27); 1B, 1C (04-31), Not Illustrated, Serial Range: JJC0174260-JJC0174359

1шт.

Without Overhead Circuit Breaker Panel

1шт.

1a

370779A1

WIRE HARNESS

Cab, Inc. 2, 2A (04-23); 2, 3 (04-29D); 1B (04-31), Not Illustrated, Serial Range: JJC0174360-JJC0174399

1шт.

Without Overhead Circuit Breaker Panel

1шт.

1a

388671A3

WIRE HARNESS

Cab, Inc. 2, 2A (04-23); 2, 3 (04-29D); 1B (04-31), Not Illustrated, Start Serial: JJC0174400

1шт.

Without Overhead Circuit Breaker Panel

1шт.

1b

122845A1

JUNCTION BLOCK

Feedback

1шт.

1c

113699A1

RECTIFIER

2-5/8

1шт.

2

284421A1

CONTROL UNIT

Low Coolant

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

4

92389C2

FLASHER UNIT

Hazard, Serial Range: -JJC0174399

1шт.

4

309001A1

FLASHER UNIT,12V

Hazard JJC0174400 to

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

6

1987452C1

RELAY

12V, 70 amp, Cab Power

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

8

1502351C1

RELAY

12V, Unloader Dipping

1шт.

9

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

10

105849A1

RELAY

20 amp, Continuous Duty

19шт.

11

123116A1

PANEL

Fuse and Relay

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

13

70-5848T1

SEAL

140 mm (5-1/2 in), Cut From F64277X

1шт.

14

REF

INSTRUCTION

Decal, Fuse and Relay, See Figure(s) 09H-22, Not Illustrated

1шт.

15

121850A1

FUSE,3A, Mini, Violet

1шт.

15a

121410A1

FUSE,5A, Mini, Tan

1шт.

16

121412A1

FUSE,10A, Mini, Red

1шт.

17

121413A1

FUSE,15A, Mini, Blue

1шт.

18

121414A1

FUSE,20A, Mini, Yellow

1шт.

19

121416A1

FUSE,30A, Mini, Green

1шт.

20

702093C1

CABLE TIE

CABLE STRAP

2шт.

21

60-6515T1

SWITCH

3rd Gear Lockout

1шт.

22

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

No. 4 x 3/4

2шт.

23

495-31012

WASHER,#4

1/8 x 5/16 x 1/32

2шт.

24

225-14104

NUT,#4-40

2шт.

25

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

26

231-14106

NUT,#6-32, GB

No. 6

2шт.

222699A1

FUSE KIT

Inc. (1) Each Of 3, 5, 7.5, 10, 15, 20, 25, 30 amp

1шт.
