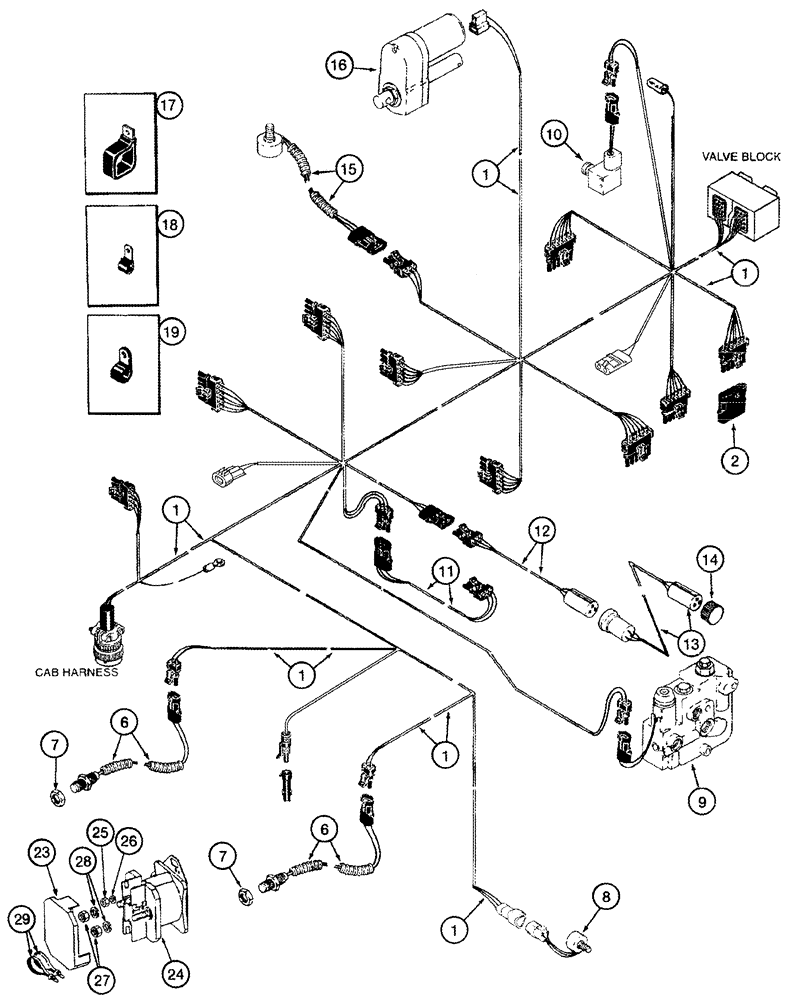

Запчасти Case IH 2344 (04-01) - HARNESS, FRONT (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
276600A1
WIRE HARNESS
Front, Inc. 2 - 4, Serial Range: -JJC0174399
1шт.
1
388314A2
WIRE HARNESS
Front, Inc. 2 - 4, Start Serial: JJC0174400
1шт.
2
127290A1
DIODE
1шт.
3
187308A1
CAP
Not Illustrated
6шт.
4
187309A1
BAR
Splice, Not Illustrated
6шт.
6
245193C2
SENSOR
Rotor Speed, Feeder Speed
2шт.
7
425-1512
JAM NUT,Jam, 3/4"-10, G5
3/4 NF
2шт.
8
122756A3
POTENTIOMETER,1000 Ohm, 8V
1K, Feeder Position, For Mounting, See Figure(s) 04-25
1шт.
9
114856A3
CONTROL VALVE
Reel Drive, See Figure(s) 08-22, Replaces 114856A1, 114856A2
1шт.
10
276035A1
VALVE
Accumulator, See Figure(s) 08-32
1шт.
11
142570A1
WIRE HARNESS
Header Lighting
1шт.
12
142553A1
WIRE HARNESS
Automatic Header Height Control
1шт.
13
1331312C1
WIRE HARNESS
Extension, Header Height Control, If Used
1шт.
14
225290C1
DUST CAP
1шт.
15
122756A3
POTENTIOMETER,1000 Ohm, 8V
1K, Concave Position, For Mounting, See Figure(s) 04-02
1шт.
16
143239A2
MOTOR, ELECTRIC
Concave Control, For Mounting, See Figure(s) 09B-13
1шт.
16
143239A2R
REMAN-ELECTRIC MOTOR
2344
1шт.
16
143239A2C
CORE-ELECTRIC MOTOR
Return Number
1шт.
17
1301387C2
CLIP
2 in ID
1шт.
18
516-23127
CLAMP,9/16", Insul, 3/8" Bolt
5шт.
19
515-23254
CLAMP,1", Insul, 3/8" Bolt
1шт.
20
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
Not Illustrated
1шт.
21
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
Not Illustrated, Header height control harness
1шт.
22
142533A1
SUPPORT
Models With Field Tracker, Models With Accumulator, Not Illustrated
1шт.
178149A1
SOLENOID SWITCH
Inc. 23 - 29, Serial Range: -JJC0174399
1шт.
23
178148A1
COVER
, Serial Range: -JJC0174399
1шт.
24
NSS
NOT SOLD SEPARAT
Switch, Serial Range: -JJC0174399
1шт.
26
492-11010
LOCK WASHER,#10
, Serial Range: -JJC0174399
1шт.
27
425-105
NUT,5/16"-18, G5
, Serial Range: -JJC0174399
2шт.
29
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in, Serial Range: -JJC0174399
2шт.
Выбрано товаров: 32
