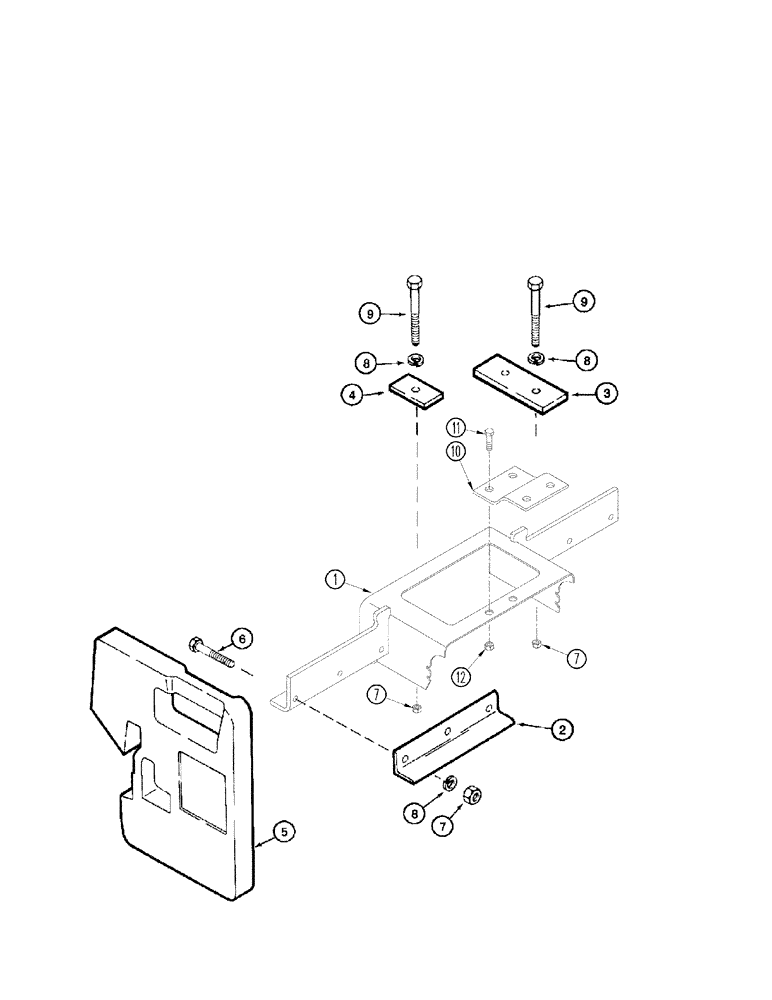

Запчасти Case IH 2344 (05-27[02]) - AXLE, STEERING - WEIGHTS, ASN JJC0174450 (04) - STEERING

1

428191A1

SUPPORT ASSY.

, Serial Range: JJC254000-JJC0254999

1шт.

1

431786A1

BRACKET

, Start Serial: JJC0255000

1шт.

2

292361A2

ANGLE

2шт.

3

178434C1

CLAMP

1шт.

4

561838R1

PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

Weight, 100 lbs.

1шт.

Order From Machinery Price List

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

4шт.

7

231-4248

NUT,1/2"-13, GB

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

.5 X 5.5 UNC GR5 YZD

3шт.

10

406560A1

SUPPORT

Power Guide Axle

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.
