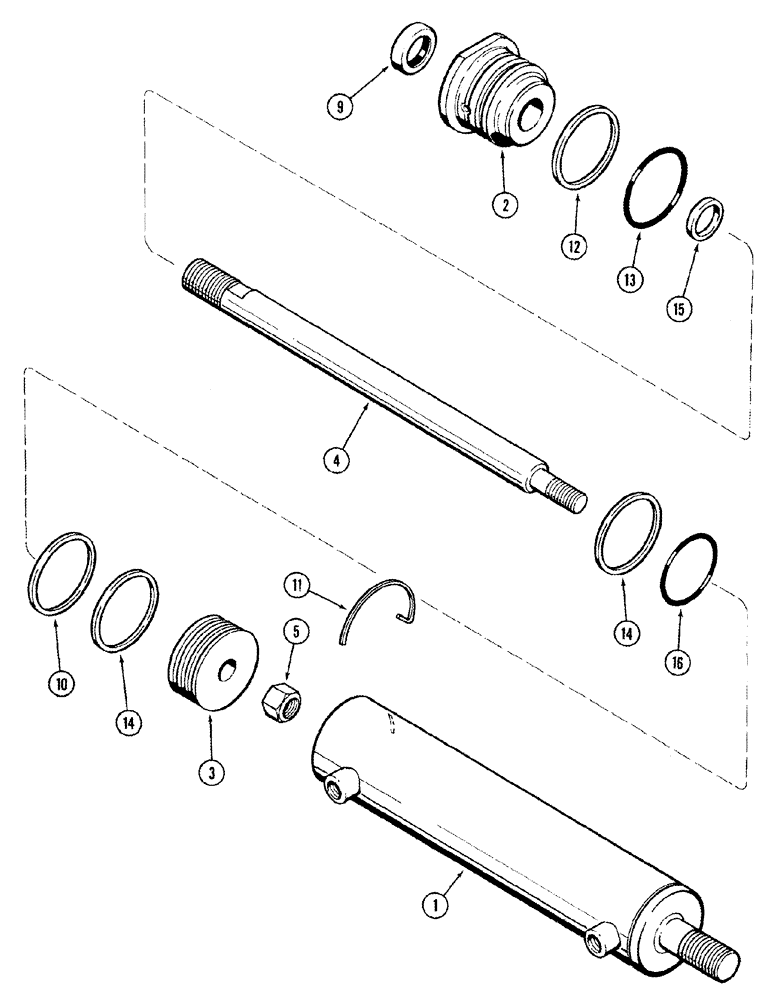

Запчасти Case IH 2344 (05-24) - CYLINDER ASSY - STEERING - POWER GUIDE AXLE - BSN JJC0174399 (04) - STEERING

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, Inc. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 127913C93

1шт.

2

127919C1

GLAND

1шт.

3

127921C1

PISTON

1шт.

4

127920C2

PISTON ROD

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

1шт.

73661C92

SEAL KIT

Inc. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Urethane

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Retaining Wire

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

13

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

Packing Gland

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Piston

2шт.

15

NSS

NOT SOLD SEPARAT

Ring, Teflon, Piston

1шт.

16

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

Piston

1шт.
