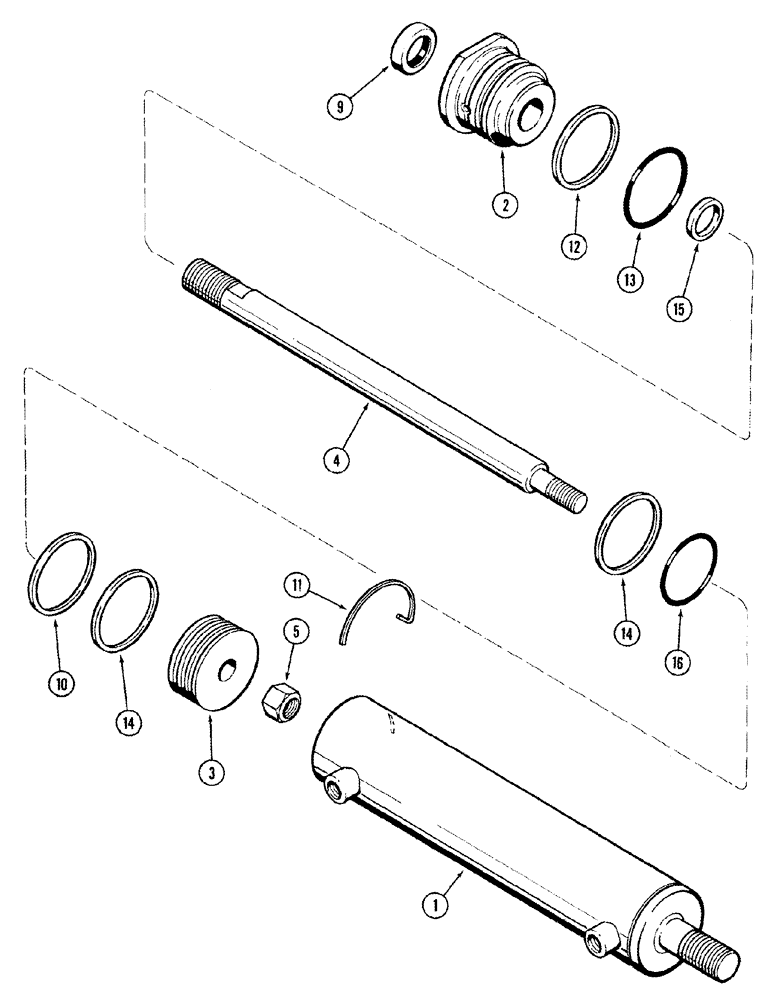

Запчасти Case IH 2344 (05-24[01]) - CYLINDER ASSY - STEERING - ASN JJC0174400 (04) - STEERING

1958024C1

STEERING CYLINDER

64 ID x 229 mm strk, Inc. 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

2344 ( 1/98 - 1/02) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 1958024C1

1шт.

2

1958020C1

GLAND

1шт.

3

1958021C1

PISTON

1шт.

4

127920C2

PISTON ROD

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

1шт.

1971520C1

SEAL KIT

Inc. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Piston Rod

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

NSS

NOT SOLD SEPARAT

Wire, Retaining

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Packing Gland

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Piston

2шт.

15

NSS

NOT SOLD SEPARAT

Ring, Teflon, Piston

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Piston

1шт.
