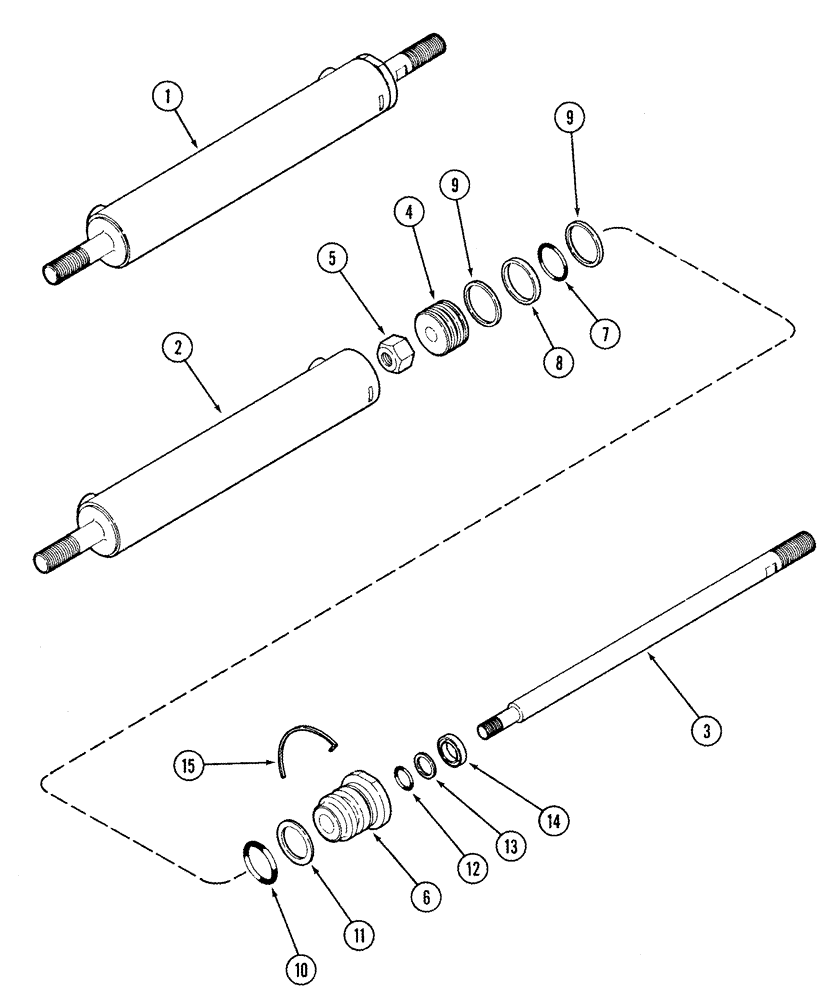

Запчасти Case IH 2344 (05-23) - CYLINDER ASSY - STEERING - WITHOUT POWER GUIDE AXLE - BSN JJC0174399 (04) - STEERING

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

51 ID x 229 mm strk, Inc. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Order 548247R91, Ref 1

1шт.

3

548251R1

ROD

1шт.

4

548252R1

PISTON

1шт.

5

232-4609

LOCK NUT,9/16"-18, GC

1шт.

6

548354R1

HEAD

1шт.

548357R91

SEAL KIT

Inc. 7 - 15

1шт.

7

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Piston Bearing

2шт.

10

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, O-Ring Backup, Head

1шт.

12

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, O-Ring Backup, Piston

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Wiper, Piston Rod

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Retaining Wire

1шт.
