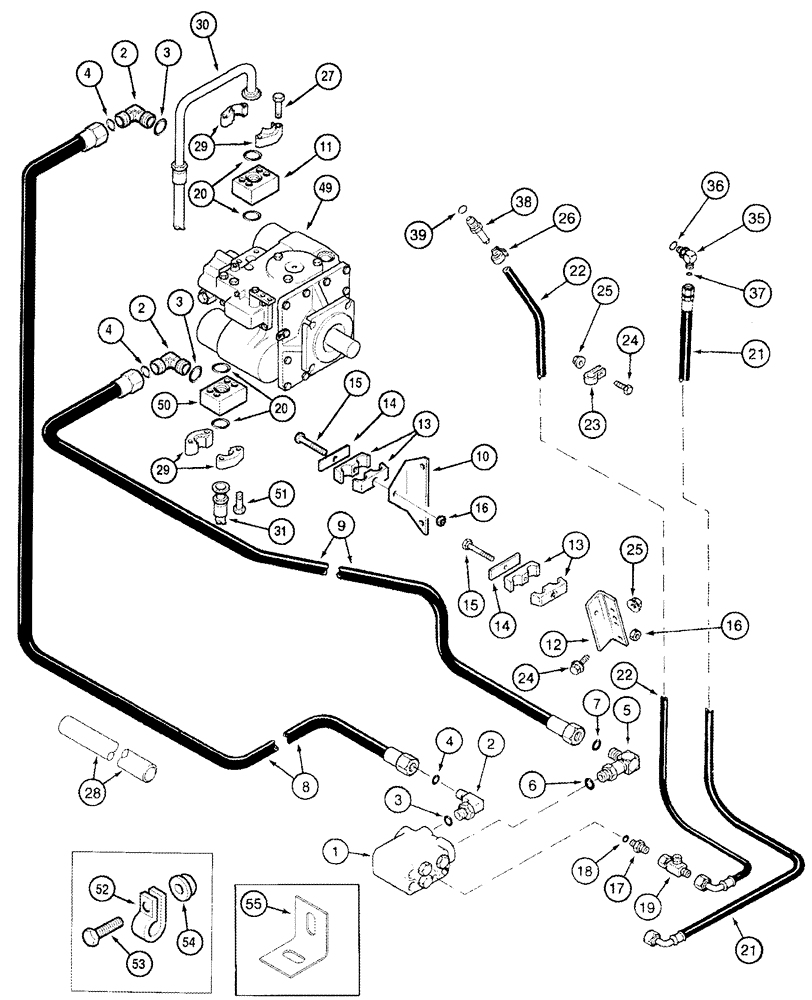

Запчасти Case IH 2344 (05-18) - HYDRAULICS - VALVE, SELECTOR - POWER GUIDE AXLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
1978000C1
VALVE
Corn And Grain, See Figure(s) 05-19
1шт.
2
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
1-3/16 fc x 1-1/16 Or, Inc. 3, 4
3шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
5
201-365
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
90°, 1 3/16"-12 x 1 1/16"-12 Sw, ORFS, Incl 6, 7
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
7
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
8
227643A1
HOSE,19.05mm ID x 3050mm L
3050 mm (120-1/8 in), Supply Reverse
1шт.
9
227642A1
HOSE,19.05mm ID x 2540mm L
2540 mm (100 in), Supply Forward
1шт.
10
235195A1
SUPPORT
Upper Hose Clamp
1шт.
11
226646A1
BLOCK
Adapter Manifold
1шт.
12
1324467C2
ANGLE
1шт.
13
1324473C1
CLAMP
2шт.
14
1324469C1
PLATE
2шт.
15
326-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8
5/16"-18 x 3 1/4", G8
2шт.
16
232-4115
LOCK NUT,5/16"-18, GC
NUT, LOCK, 5/16"-18, GC
2шт.
17
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
3/4 fl x 9/16 Or, Inc. 18
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
19
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
1шт.
20
238-6219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
4шт.
21
240455A1
HOSE
3340 mm (131-1/2 in), Flush Supply, For Attaching Parts, See Figure(s) 05-16
1шт.
22
240456A1
HOSE,12.7mm ID x 3560mm L
3560 mm (140-1/4 in), Flush Return
1шт.
23
L50062
SHIN
1шт.
24
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
3шт.
25
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
3шт.
26
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP, HOSE, #12, 0.69/1.25 Type F Worm
1шт.
27
413-756
BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5
7/16 x 3-1/2
4шт.
28
240575A1
HOSE PROTECTION
1524 mm (60 in)
2шт.
29
S97224
CLAMP
1 in, Split Flange
4шт.
30
227641A2
HOSE
4055 mm (159-5/8 in), Reverse, Serial Range: Pump-Motor
1шт.
31
227640A1
HOSE,25.4mm ID x 3455mm L
3455 mm (136 in), Forward, Serial Range: Pump-Motor
1шт.
35
135485A1
ELBOW
Inc. Orifice
1шт.
36
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
37
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
38
217-397
FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB
Incl 39 1/2" Hose x 9/16"-18 ORB, Beaded
1шт.
39
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
49
REF
INSTRUCTION
Pump, Hydrostatic, See Figure(s) 06-07 - 06-10
1шт.
50
226646A1
BLOCK
Adapter Manifold
1шт.
51
413-756
BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5
7/16 x 3-1/2
4шт.
52
515-23175
CLAMP,11/16", Insul, 3/8" Bolt
7/8 ID
1шт.
52
515-23238
CLAMP,15/16", Insul, 3/8" Bolt
1шт.
52
515-23333
CLAMP,1 5/16", Insul, 3/8" Bolt
2шт.
53
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
54
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
4шт.
55
1301560C1
SUPPORT
Clamp Mounting, Rear
1шт.
Выбрано товаров: 45
