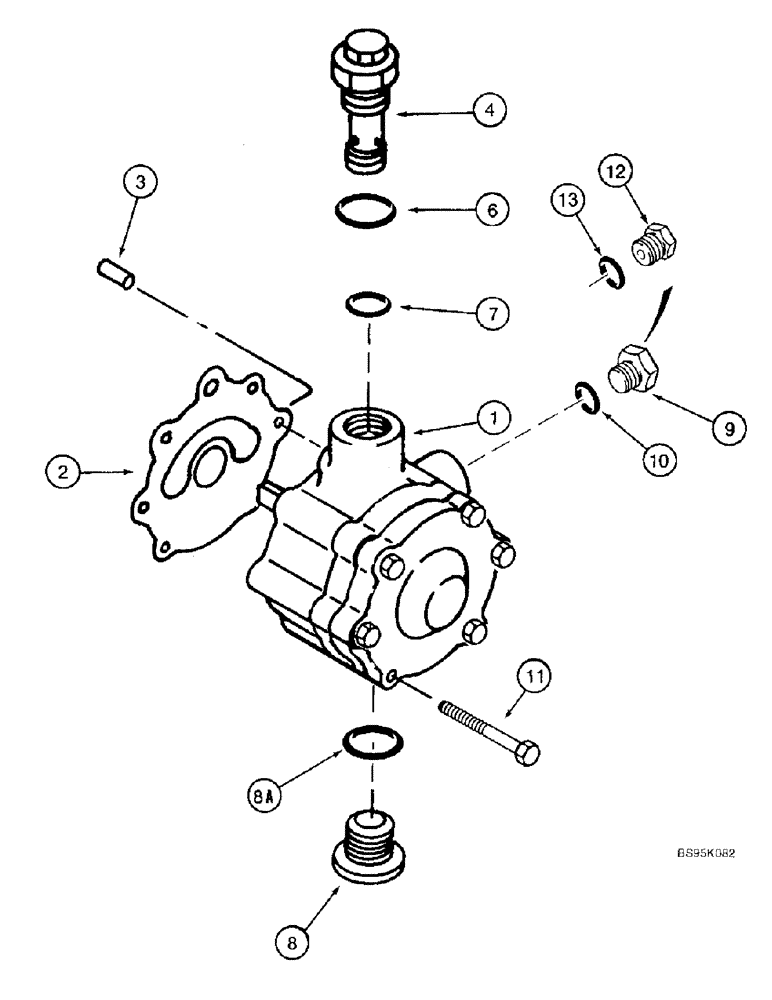

Запчасти Case IH 2188 (6-32) - HYDROSTATIC PUMP ASSEMBLY, CHARGE PUMP, RICE COMBINE (03) - POWER TRAIN

107593A2

PUMP

ASSEMBLY - charge, rice combine, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - charge pump, order pump assembly 107593A2

1шт.

2

133760C2

GASKET

- charge pump

1шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

1986741C1

VALVE PRESSURE RELIE

VALVE ASSEMBLY - low pressure relief, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - relief, includes 237-6008 O-ring, Ref. 5 below

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Not used in this assembly, Incl. Ref. 8A Hex Hd, 7/16"-20 ORB

1шт.

8a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, if used, see Ref. 12, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

11

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.

12

196443A1

REDUCER

ADAPTER - straight, special, 7/16-20 female x 7/8-14 inch O-ring boss, replaces Ref. 9 on rice models, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
