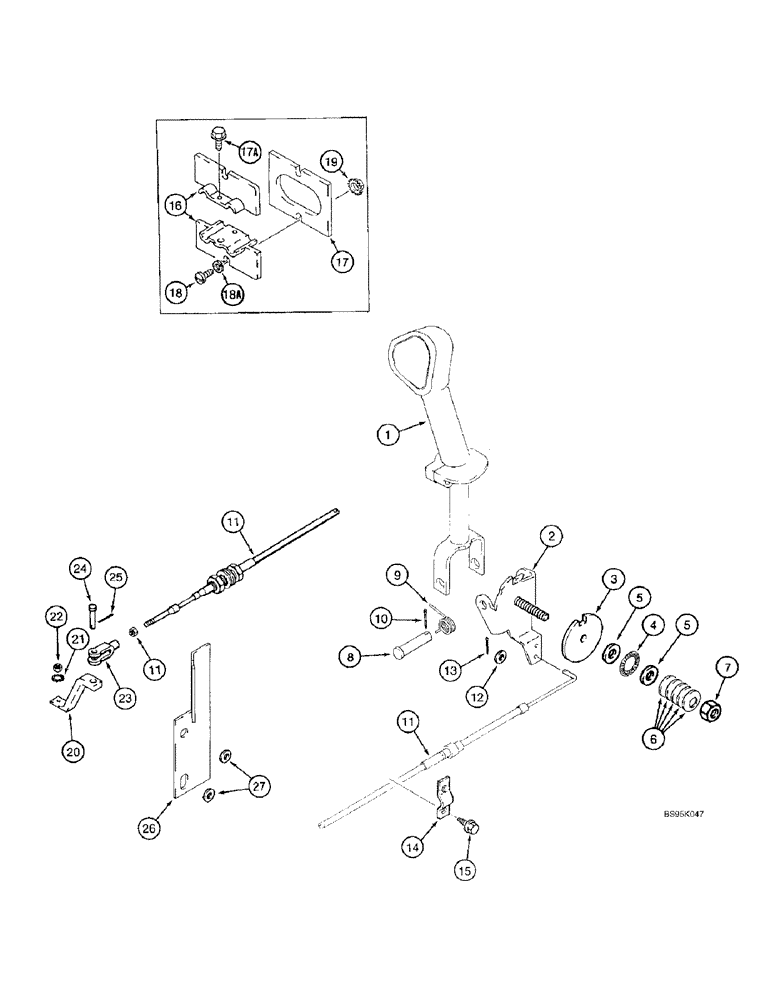

Запчасти Case IH 2188 (6-20) - PROPULSION CONTROL (03) - POWER TRAIN

1

REF

INSTRUCTION

LEVER ASSEMBLY - propulsion control, parts list Figure 4-14

1шт.

2

113318A2

SUPPORT

- propulsion control lever

1шт.

3

1994977C1

FRICTION WASHER

- friction, special

1шт.

4

159688R91

THRUST BEARING

BEARING -, Serial Range: support-console

1шт.

5

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened

2шт.

6

1994980C1

BELLEVILLE WASHER

- Belleville

5шт.

7

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

9

128593A1

SPRING

- torsion, lever support

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

115396A1

CABLE

- throttle and propulsion

1шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

14

A75815

CLAMP

- retaining, Serial Range: cable-console

1шт.

15

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

16

119314A1

CLAMP

- bulkhead, propulsion and throttle, Serial Range: cables-cab

2шт.

17

119328A1

GASKET,5mm Thk

- bulkhead clamp

1шт.

17a

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.

18

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #10-24 x 3/4"

2шт.

18a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

184433A1

LEVER

- control, hydrostatic pump

1шт.

21

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

CLEVIS, ADJUSTABLE, #10-32 x 1 9/16"

1шт.

24

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

25

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

26

138479A2

SUPPORT

BRACKET - support, Serial Range: cable-pump

1шт.

27

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.
