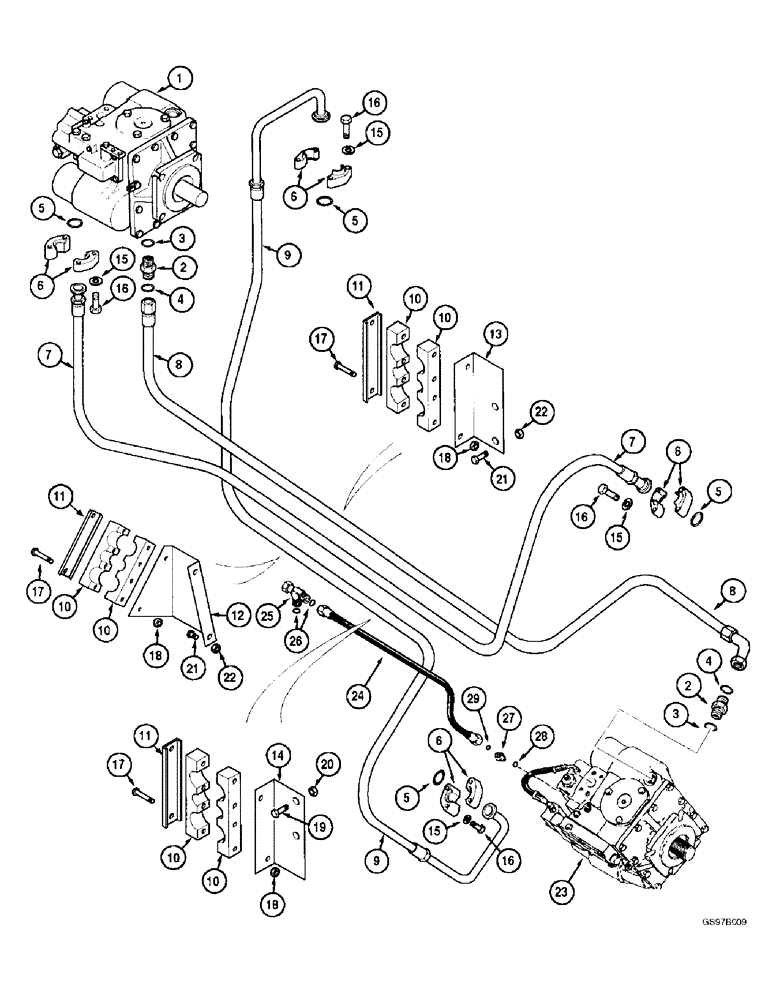

Запчасти Case IH 2188 (6-13A) - HYDROSTATIC PUMP AND MOTOR, 2-SPD MTR, W/O PWR GUIDE AXLE, CORN, GRAIN AND RICE, JJC0193725 AND AFT (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, corn and grain, parts list Figures 6-22 - 6-30

1шт.

1

87659947

REMAN-HYDROSTAT PUMP

Corn And Grain

1шт.

1

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

1

108113A3

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, rice, parts list Figures 6-22 - 6-28 and 6-32

1шт.

1

87637529R

REMAN-HYDROSTAT PUMP

Rice

1шт.

1

87637529C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 3 and 4 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

- split flange, 1 inch

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

- forward, pump to motor, 136 inch (3455 mm) long

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

- drain, pump to motor, 151-25/32 inch (3855 mm) long

1шт.

9

227641A2

HOSE

- pump to motor, 159-21/32 inch (4055 mm) long

1шт.

10

221145A1

CLAMP

- two piece, hose

3шт.

11

224303A1

GUIDE

CHANNEL - clamp back-up, 1-5/16 ID x 1/8 inch wide

3шт.

12

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

13

224302A1

SUPPORT

- hose clamp

1шт.

14

224301A1

SUPPORT

- hose clamp

1шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

242507A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, component parts list not available at time of printing

1шт.

23

400476A2R

REMAN-HYD MOTOR,89.13 CC

2188 JJC0193725 & AFT. (1/95-12/97) Reman for new P/N 242507A2

1шт.

23

400476A2C

CORE-MOTOR HYDRAULIC

Return Part Number

1шт.

24

129188A1

HOSE,6.35mm ID x 1050mm L

- 46-1/16 inch (1170 mm) long

1шт.

25

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

- 11/16-16 inch face seal branch x face x swivel face, Includes: Ref. 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 28 and 29

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
