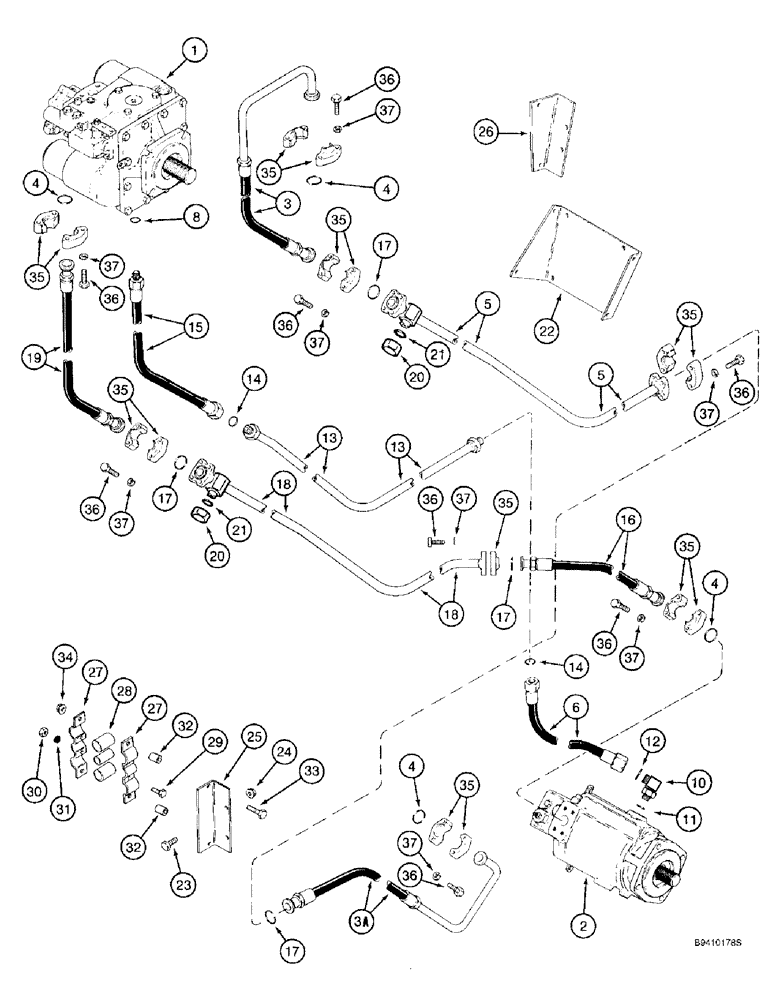

Запчасти Case IH 2188 (6-10) - HYDROSTATIC PUMP AND MOTOR, SNL SPEED MOTOR, W/O POWER GUIDE AXLE, CORN AND GRAIN, BEFORE JJC0193725 (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, corn and grain, parts list Figures 6-22 - 6-30

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2188; BEFORE JJC0193725 (1/95-12/97), Reman for New P/N 1343716C4

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

1

87659947

REMAN-HYDROSTAT PUMP

Remanufactured HYDROSTATIC PUMP

1шт.

1

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number, HYDROSTATIC PUMP

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, single speed, parts list Figures 6-34 - 6-38

1шт.

3

1979955C2

HOSE

- reverse pressure, upper, 33-7/8 inch (860 mm) long

1шт.

3a

128341A1

HOSE

- reverse pressure, lower, 38-7/16 inch (976 mm) long

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure, 1 inch OD

1шт.

6

128342A1

HOSE

- case drain, lower, 39-3/4 inch (1010 mm) long

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

- 90 degree, 1-7/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 11 and 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE - case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

115619A1

HOSE,25.4mm ID x 474mm L, SAE 100R1

- case drain, upper, 18-11/16 inch (474 mm) long

1шт.

16

191807A1

HOSE

- forward lower pressure, 28-3/4 inch (730 mm) long

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1541756C2

HYD TUBE

TUBE - forward pressure, 1 inch OD

1шт.

19

1979952C3

HOSE,25.4mm ID x 546mm L

- forward upper pressure, 21-1/2 inch (546 mm) long

1шт.

20

201-907

CAP,1-3/16" - 12 ORFS

If used, Includes Ref. 21 1 3/16"-12 ORFS

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

7шт.

24

231-5146

FLANGE NUT,3/8"-16

7шт.

25

1347034C1

SUPPORT

BRACKET - tube support, rear

1шт.

26

1347033C1

SUPPORT

BRACKET - tube support, front

1шт.

27

1347156C1

SHIN

CLAMP - half, tube

6шт.

28

187935C1

STRIP

SLEEVE - pressure tube clamp

9шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

32

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

6шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

6шт.

34

231-5146

FLANGE NUT,3/8"-16

6шт.

35

S97224

CLAMP

- split flange, 1 inch

16шт.

36

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

37

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

38

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, (Not Shown) 1 5/16", Insul, 3/8" Bolt

1шт.

39

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Used to separate reverse hydrostatic and case drain hoses, Not shown 1 1/2", Insul, 3/8" Bolt

1шт.
