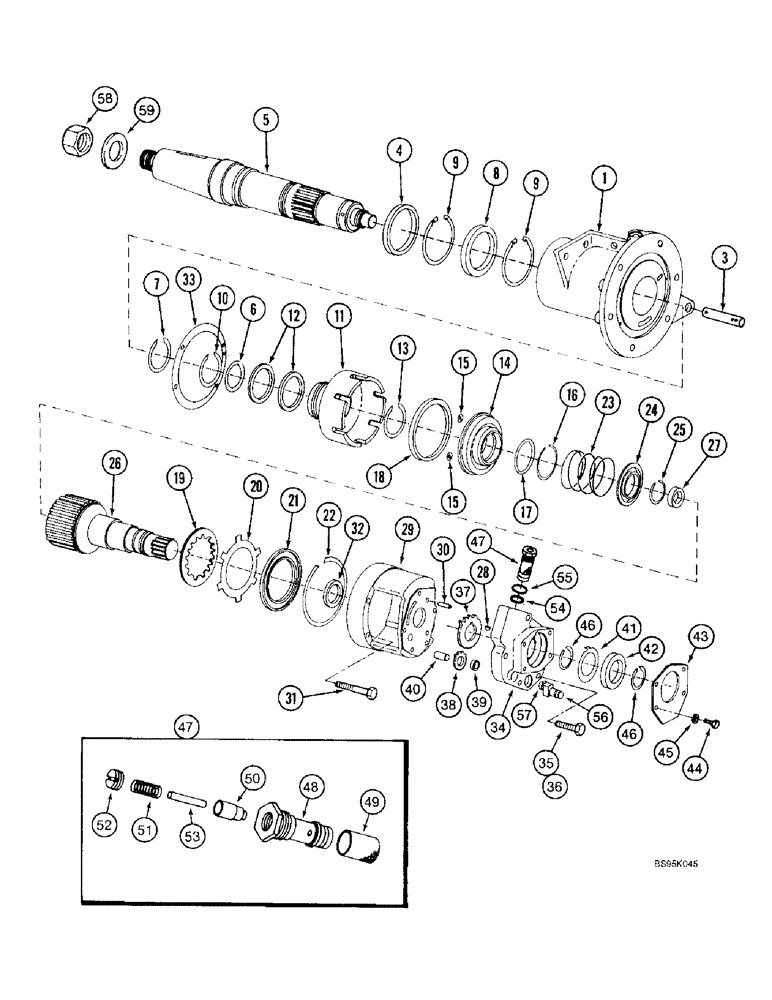

Запчасти Case IH 2188 (6-06) - SEPARATOR DRIVE CLUTCH ASSEMBLY (03) - POWER TRAIN

1541764C2

CLUTCH ASSEMBLY

- separator drive, Includes: Ref. 1 - 59

1шт.

1

1541848C1

HOUSING

- clutch

1шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

- pivot

1шт.

4

188252C1

SEAL,70.8mm ID x 110.13mm OD x 11mm Thk

- clutch housing

1шт.

5

1329902C1

SHAFT

- separator drive

1шт.

6

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

7

357194R1

RING

- retaining

1шт.

8

1541817C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING - separator shaft, standard

1шт.

9

101-21433

SNAP RING,#433, 4.641", Int

RING, SNAP, #433, 4.641", Int

2шт.

10

271130R1

RING

- retaining, clutch cup locating

1шт.

11

133994A1

CLUTCH HOUSING

CUP - clutch

1шт.

12

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

- seal, clutch cup

2шт.

13

68625C1

RING

- retaining, clutch cup

1шт.

14

133992A1

PISTON

ASSEMBLY - clutch, Includes: Ref. 15

1шт.

15

529376R1

STRAINER ELEMENT

SCREEN - piston orifice

2шт.

16

100-11187

SNAP RING,#187, Ext

Ring, Snap, , piston stop #187, Ext

1шт.

17

238-7328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 7, 75 Duro

1шт.

18

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston, clutch oil

1шт.

186397A1

SERVICE KIT,Service Package, Drive and Driven Plates

KIT - clutch, disc and plate (Replaces kit 1541890C1), Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clutch, drive

10шт.

20

NSS

NOT SOLD SEPARAT

DISC - clutch, driven

10шт.

21

139202C1

RETAINER

- clutch driven disc

1шт.

22

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, clutch driven disc

1шт.

23

381493R1

SPRING

- clutch release

1шт.

24

381494R1

RETAINER

- clutch release spring

1шт.

25

370504R1

RING

- retaining, clutch release spring

1шт.

26

68081C2

SHAFT

- drive

1шт.

27

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - drive shaft

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

29

1989681C2

HOUSING

CARRIER ASSEMBLY - clutch, Includes: Ref. 30

1шт.

LUBE TUBE..1989654C1-INSERTS..37165D AND 42411D

1шт.

30

37-1512

DOWEL,5/16" x 3/4"

PIN - dowel, 5/16 x 3/4 inch, hardened

2шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

4шт.

32

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch OD, clutch carrier

1шт.

33

529565R2

GASKET,0.79mm Thk

- clutch carrier

1шт.

1541764C2

CLUTCH ASSEMBLY

- separator drive

1шт.

34

67330C1

HOUSING

- clutch pump

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

37

381499R1

PINION

GEAR - clutch pump driver

1шт.

38

381500R1

PINION

GEAR - clutch pump idler

1шт.

39

S108204

NEEDLE BEARING,Needle, 15.75mm ID x 22.35mm OD x 12.7mm W

BEARING - needle

1шт.

40

381502R1

SHAFT

- idler gear

1шт.

41

193369C1

RETAINER

- pump housing

1шт.

42

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING - pump housing

1шт.

43

191421C1

BEARING HOUSING

RETAINER - pump housing bearing

1шт.

44

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

46

555570R1

SNAP RING

RING - retaining, pump housing bearing

2шт.

47

69040C94

VALVE

ASSEMBLY - regulator, Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 69040C94

1шт.

49

69042C2

STRAINER ELEMENT

STRAINER - valve

1шт.

50

NSS

NOT SOLD SEPARAT

POPPET - valve, order valve assembly 69040C94

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - poppet, order valve assembly 69040C94

1шт.

52

NSS

NOT SOLD SEPARAT

SCREW - valve, order valve assembly 69040C94

1шт.

53

NSS

NOT SOLD SEPARAT

PIN - valve

1шт.

54

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

55

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

10-1, Cl 8, .755" ID x .097" Thk

1шт.

56

188450C1

FITTING

- pump connection

1шт.

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

For Ref 56

1шт.

57

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

- fitting

1шт.

58

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

1шт.

59

396-41131

WASHER,1 3/8" x 3" x 1/4", HDN

- flat, 1-3/8 x 3 x 1/4 inch, hardened

1шт.
