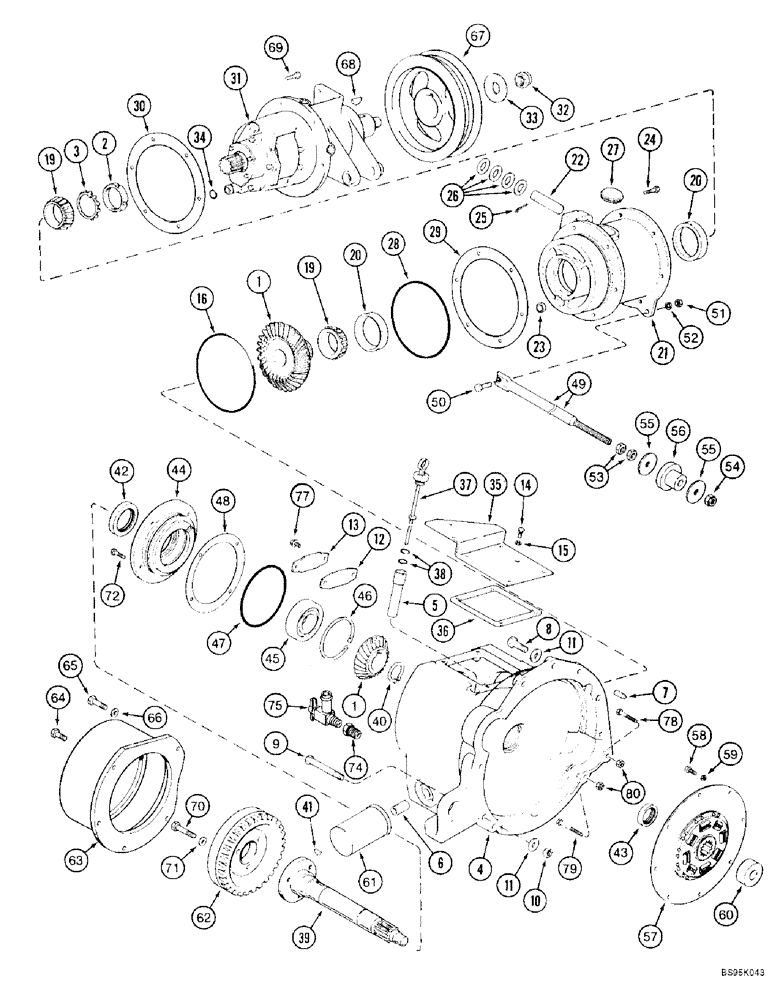

Запчасти Case IH 2188 (6-02) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

1

184497C2

GEAR-SET

KIT - gear, separator drive, 41 and 31 teeth, matched set

1шт.

2

191283C1

BEARING LOCK NUT

- bearing lock

1шт.

3

192-364

LOCK WASHER

WASHER - bearing lock, SAE No. TW-113

1шт.

4

184427C4

HOUSING

ASSEMBLY - engine PTO, Includes: Ref. 5 - 7

1шт.

5

188072C1

TUBE,25.4 mm OD, 127 mm Length

- dipstick, oil

1шт.

6

188214C1

FITTING

- housing filter

1шт.

7

1330136C1

DOWEL

PIN - dowel, locating

2шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

6шт.

12

185057C2

GASKET,0.91mm Thk

- access cover

1шт.

13

185056C1

COVER

- bolt access hole

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

1шт.

19

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

CONE - tapered roller bearing

2шт.

20

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

CUP - tapered roller bearing

2шт.

21

188161C91

HOUSING

ASSEMBLY - separator drive clutch, Includes: Ref. 22 and 23

1шт.

22

195439C2

PIN,25.29mm OD x 101.6mm L

- clutch housing

1шт.

23

41-1616

PLUG,Cup, 1", Stainless

1шт.

24

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

26

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

27

663906R1

CAP

- wheel hub

1шт.

28

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

- 8 ID x 1/8 inch wide

1шт.

188195C1

SHIM KIT

KIT - shim, Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, separator clutch housing

1шт.

30

188425C2

GASKET,0.79mm Thk

- clutch, Serial Range: housing-clutch

1шт.

31

1541764C2

CLUTCH ASSEMBLY

- separator drive, parts list Figures 6-6 and 6-8

1шт.

32

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

1шт.

33

396-41131

WASHER,1 3/8" x 3" x 1/4", HDN

- flat, 1-3/8 x 3 x 1/4 inch, hardened

1шт.

34

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

35

188451C1

COVER

- PTO housing

1шт.

36

191830C2

GASKET

- PTO cover

1шт.

37

186019C91

DIPSTICK

ASSEMBLY - PTO housing oil, Includes: Ref. 38

1шт.

38

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

39

192816C2

SHAFT

- drive, PTO

1шт.

40

100-12200

SNAP RING,#200, Ext

Ring, Snap, , Drive shaft #200, Ext

1шт.

42

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- 3-5/8 inch OD

1шт.

43

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

- shaft, 2-5/8 inch OD

1шт.

44

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing housing

1шт.

45

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - ball, 4-23/32 inch OD, drive shaft

1шт.

46

100-22475

SNAP RING,4.78", Int, #475

Ring, Snap, 4.78", Int, #475

1шт.

47

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

KIT - shim, hub, Includes: Ref. 48

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, drive shaft hub

1шт.

49

1315648C1

ROD

- snubber, engine

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

54

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

55

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch, engine snubber

2шт.

56

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

57

184429C2

CLUTCH DISC,352.4mm OD

PLATE - PTO drive

1шт.

184429C2R

REMAN-CLUTCH DISC

2188 (1/95-12/97)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

58

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

59

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

60

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

- flywheel, power takeoff

1шт.

61

70203C2

HYDRAULIC OIL FILTER

FILTER - oil, PTO

1шт.

62

1330488C1

PULLEY

- drive, auxiliary pump, 8.85 inch OD

1шт.

63

1303141C2

HOUSING

- hydrostatic pump

1шт.

64

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

66

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch, special

2шт.

67

1541713C1

PULLEY

- separator drive, 11 inch OD

1шт.

68

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

69

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

70

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

71

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

72

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

74

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

75

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

77

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

2шт.

79

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

1шт.

78

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

80

425-106

NUT,3/8"-16, Cl 5

2шт.

(FOOTNOTE)

AUX pump pulley drive HUB can be found on Figure 8-24, Ref. 36, part # 196482C2.

1шт.

41

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

5/16" x 2 1/8", HT

1шт.
