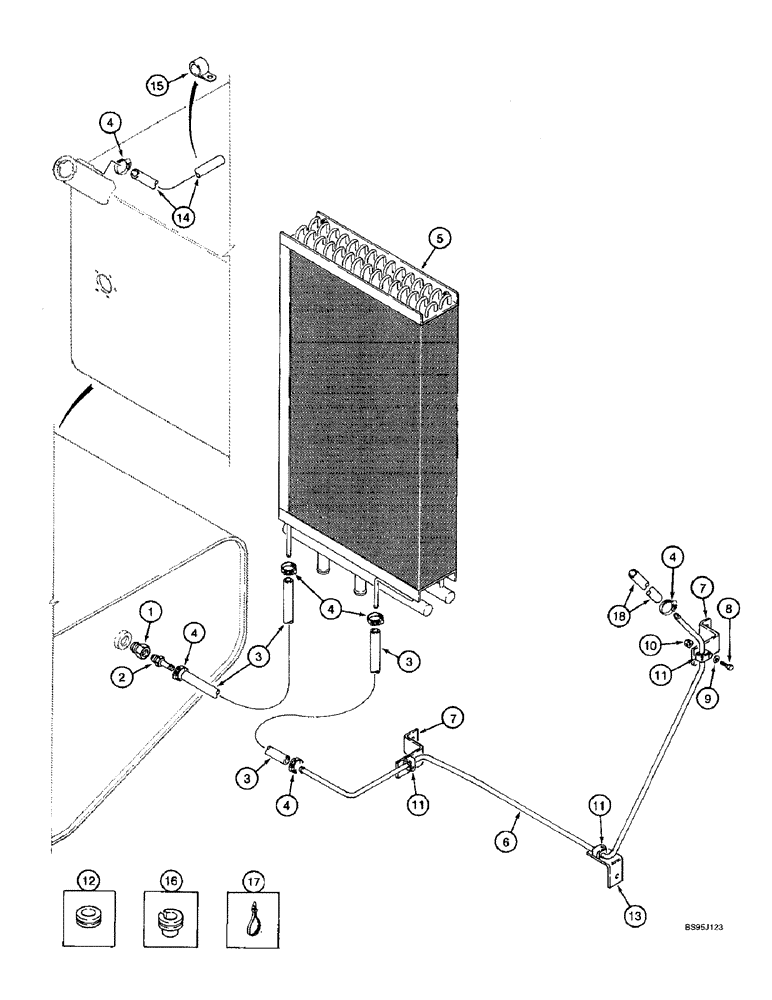

Запчасти Case IH 2188 (3-11C) - FUEL LINES RETURN SYSTEM, COMBINE P.I.N. JJC0191483 AND AFTER (02) - FUEL SYSTEM

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter 3/8" Hose X 1/4" NPTF Beaded

1шт.

3

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

9.53 mm ID x 770.00 mm, SAE 30R2

2шт.

4

214-1506

HOSE CLAMP,11.18mm - 19.81mm

CLAMP - adjustable, 7/16 - 3/4 inch

5шт.

5

195441A2

COOLER

- combination, fuel and oil, see Figure 8-17A for mounting and hardware

1шт.

6

193244A1

FUEL TUBE

TUBE - fuel return, Serial Range: engine-cooler

1шт.

7

121525A1

SUPPORT

- fuel tube

2шт.

9

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

11

183821C1

CLAMP

- fuel tube

3шт.

12

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

- rubber, 7/8 inch groove diameter

2шт.

13

178950C1

ANGLE

SUPPORT - steering tubes, fuel tube

1шт.

14

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

TUBE , Fuel Tank Vent, Cut From Bulk Tube, See Below 2946.40 mm, SAE J844C

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

16

195803C1

GROMMET

- 3/8 inch ID, tube

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - 13 inch (331 mm) long, cut from 364357C1 bulk hose below

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 3/8 (10) ID x 600 inch (15240 mm) long

1шт.

74813C2

TUBE,0.375" OD

- bulk, 3/8 (10) OD x 600 inch (15240 mm) long

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
