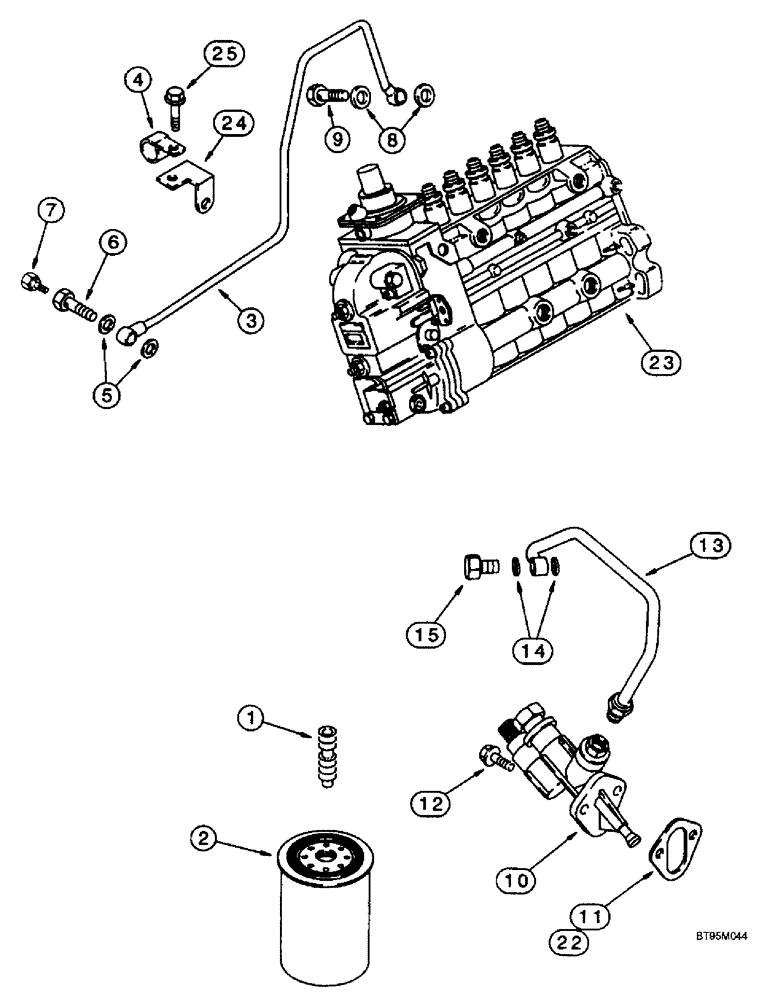

Запчасти Case IH 2188 (3-05A) - FUEL FILTER ANDTRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFT (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
J925955
ADAPTER,M16 x 1.5 x M16 x 1.5
- fuel filter
1шт.
2
J903640
FILTER, FUEL
FILTER - fuel
1шт.
3
J927306
PIPE
TUBE - supply, fuel
1шт.
4
J914711
CLIP
CLAMP - P-type
1шт.
5
J918191
PACKING RING
WASHER - sealing, special, 12 x 18 x 1 mm
2шт.
6
J911446
BANJO BOLT,M12 x 1.5 x 24mm
BOLT, BANJO, M12 x 1.5 x 24
1шт.
7
J905860
BANJO BOLT
- hex, special, vent (Replaces screw J905403)
1шт.
9
J924725
BANJO BOLT,M14 x 1.5 x 26mm
BOLT - banjo connector
1шт.
10
J926034
FEED PUMP
PUMP - fuel transfer, see J926764 repair kit below, no longer available, order J930135 pump
1шт.
10
J930135
FEED PUMP
PUMP - fuel transfer, not shown
1шт.
11
J923054
GASKET
- mounting, fuel transfer pump
1шт.
12
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
13
J918539
FUEL TUBE,8 mm OD x 320.7 mm L
TUBE - supply
1шт.
14
J918191
PACKING RING
WASHER - sealing, special, 12 x 18 x 1 mm
2шт.
15
J916361
BANJO BOLT
BOLT - banjo connector, 12 - 1.5 x 24 mm
1шт.
J926764
GASKET KIT
KIT - transfer pump repair, used with J926034 pump only, not shown, Includes: Ref. 16 - 22
1шт.
16
NSS
NOT SOLD SEPARAT
VALVE - check, not shown
2шт.
17
NSS
NOT SOLD SEPARAT
GASKET - check valve, not shown
2шт.
18
NSS
NOT SOLD SEPARAT
SEAL - O-ring, not shown
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL - O-ring, not shown
2шт.
20
NSS
NOT SOLD SEPARAT
SEAL - O-ring, not shown
1шт.
21
NSS
NOT SOLD SEPARAT
VALVE - check, not shown
1шт.
22
J923054
GASKET
- mounting, fuel transfer pump
2шт.
23
J926887
PUMP, FUEL INJECTION
PUMP ASSEMBLY - fuel injection, with aneroid, component parts not serviced separately
1шт.
24
J921333
BRACE
- tube
1шт.
25
J924962
FLANGE BOLT
BOLT - hex flange, 8 - 1.25 x 16 mm, class 10.9, clamp to brace (Replaces bolt J925883)
1шт.
Выбрано товаров: 27
