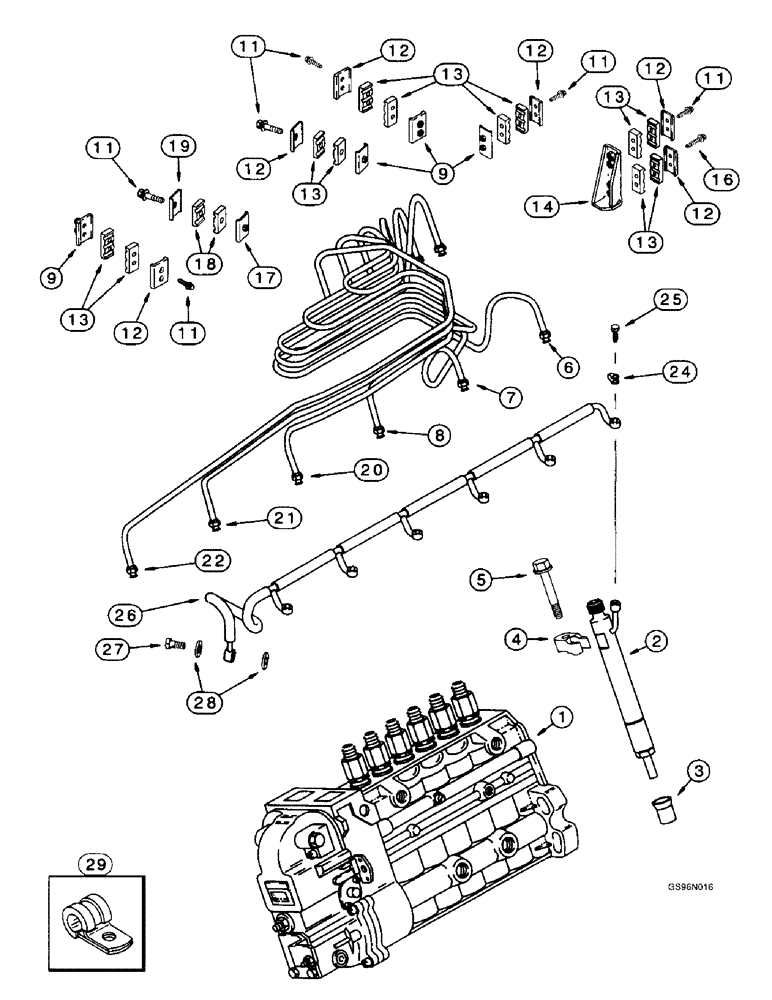

Запчасти Case IH 2188 (3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (02) - FUEL SYSTEM

1

J925549

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, without aneroid, parts list Figure 3-6

1шт.

1

JR925549

REMAN-INJECTION PUMP

1шт.

1

JC925549

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-8

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J918788

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

Not interchangable with J929810 on Figure 3-2. Material is different.

1шт.

7

J920118

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J920120

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

10шт.

12

J904519

SUPPORT

BRACE - tube retaining

5шт.

13

J917747

CLAMP

- fuel tube

10шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

Some combines may have J921416 bracket, vendor No. 3921416 stamped on bracket, in place of Ref. 14, J917776 bracket

1шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

2шт.

18

J917746

CLAMP

- fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET - fuel tube

2шт.

20

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J910754

FUEL TUBE

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

- connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing, banjo fitting

2шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type

2шт.
