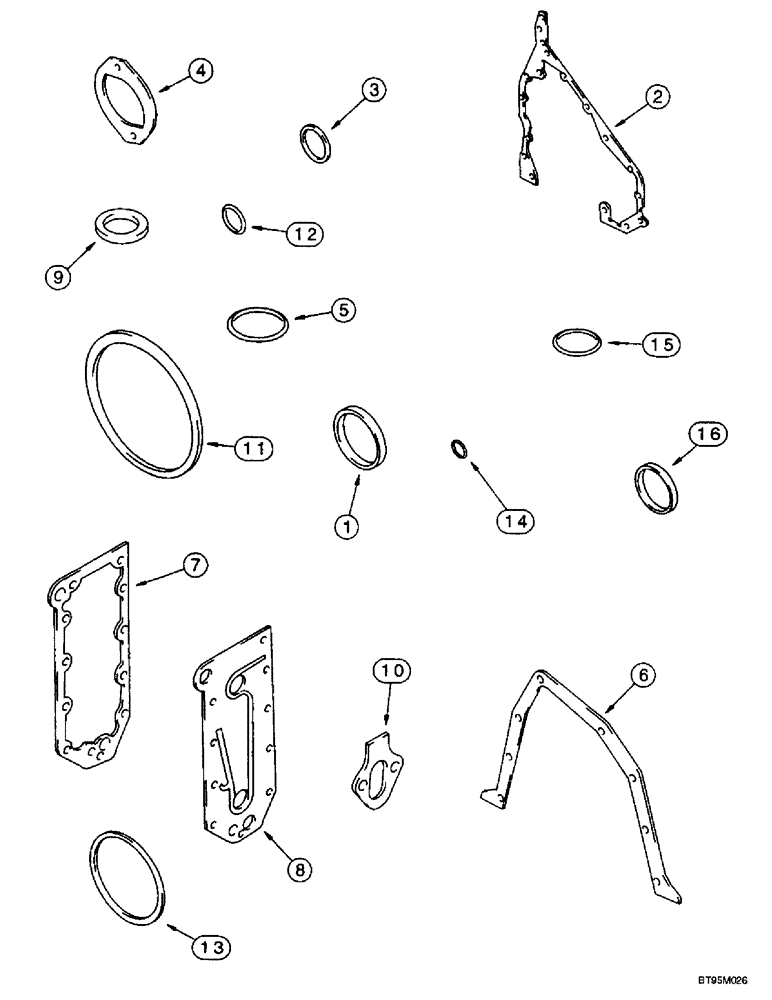

Запчасти Case IH 2188 (2-55E) - CYLINDER BLOCK GASKET KIT, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE

A77855

KIT

- gasket, cylinder block, Includes: Ref. 1 - 16

1шт.

For a complete engine overhaul, order (1) valve grind kit, Figure 2-55C, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-35A, the front and rear crankshaft seal kit, Figure 2-49C and 2-49E and the required cylinder head gasket, Figure 2-37A

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J929253

GASKET

- housing, gear

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

4

J919601

GASKET

- access cover plate

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump

1шт.

6

J914301

GASKET

- rear cover retainer, crankshaft

1шт.

7

J918174

GASKET,0.71mm Thk

- cooler core, oil

1шт.

8

J929011

GASKET,1.19mm Thk

- cooler cover, oil

1шт.

9

J901798

SEALING WASHER

WASHER - sealing

1шт.

10

J923054

GASKET

- mounting, fuel transfer pump

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sealing, sleeve

6шт.

14

J913994

O-RING

- sealing

1шт.

15

J916284

O-RING

- sealing, fuel injection pump

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING - quad, fuel injection pump

1шт.
