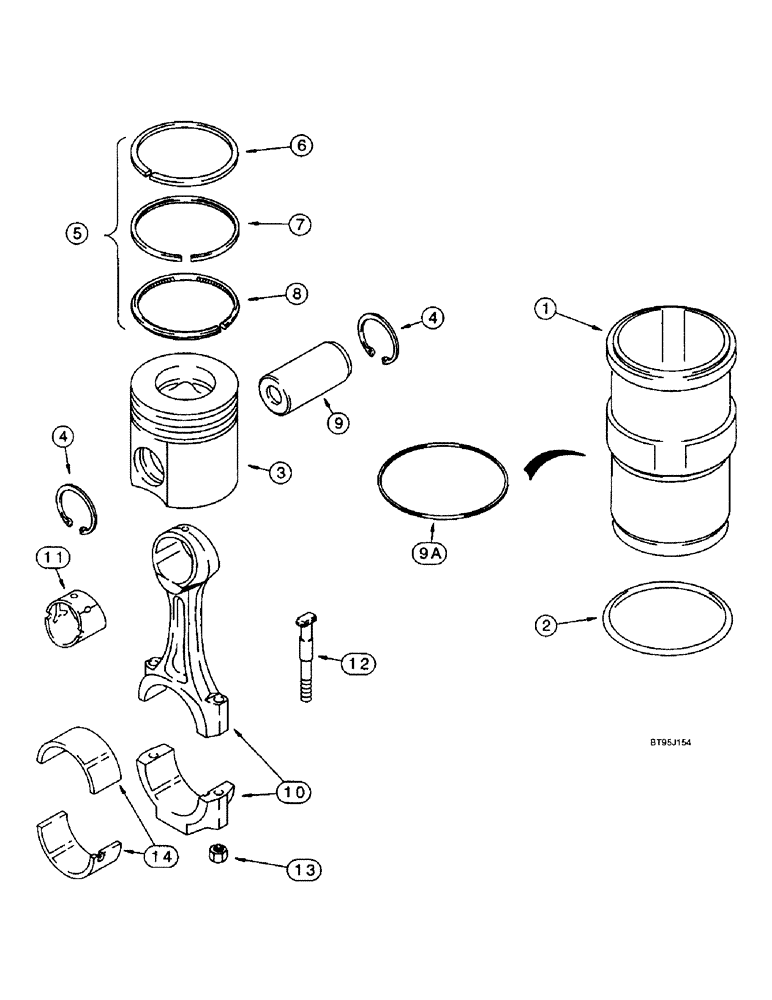

Запчасти Case IH 2188 (2-52) - PISTON AND CONNECTING ROD, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, engine, Includes: Ref. 1 - 8

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

5

A77802

PISTON RING SET

KIT - piston ring, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9

J901597

PIN

- piston

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010") (Replaces shim J914653) 0.254mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015") (Replaces shim J914654) 0.381mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020") (Replaces shim J914655) 0.508mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 10 - 13

1шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 10 - 13

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 10 - 13

6шт.

84487529R

REMAN-CONNECTING ROD

2188 PISTON AND CONNECTING ROD, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (1/95 - 12/97), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece, order rod assembly

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

12

J928870

ROD

- special, rod, bearing cap, connecting rod

2шт.

13

J901381

SPECIAL NUT

- hex, rod bolt, connecting rod

2шт.

14

A77563

BEARING SET

KIT - bearing, upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize, connecting rod

6шт.
