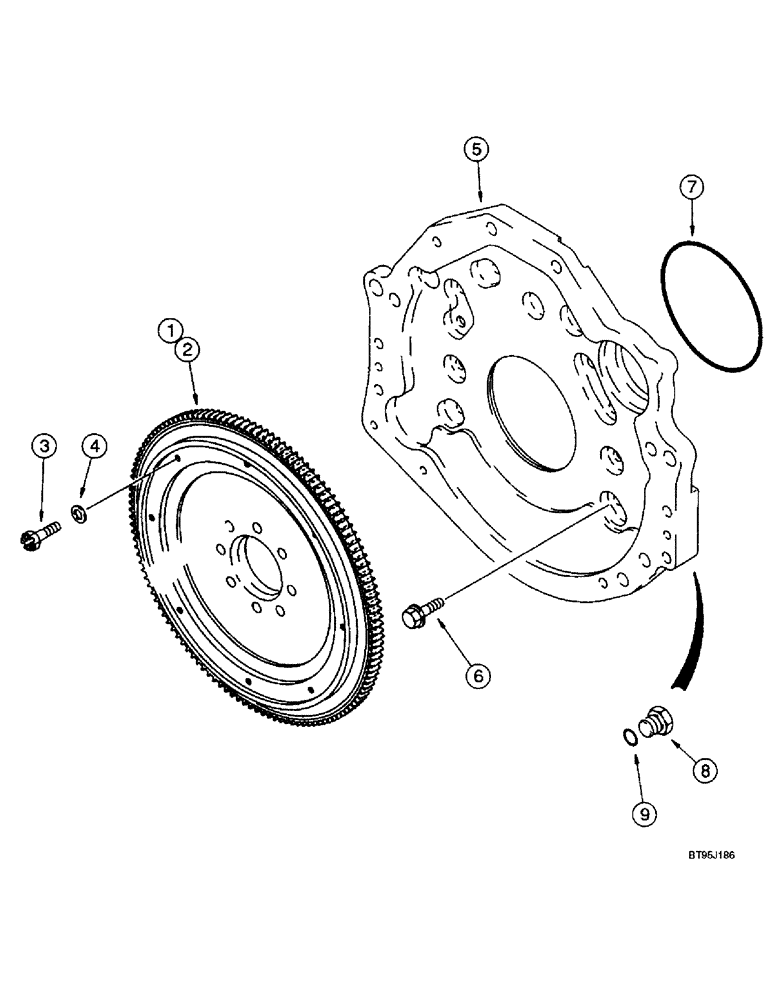

Запчасти Case IH 2188 (2-51A) - FLYWHEEL AND BACKING PLATE, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE

1

J917052

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 50 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

5

J913593

PLATE

- backing, flywheel housing

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

10шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

8

J910248

PLUG

- flywheel housing, Includes: Ref. 9

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
