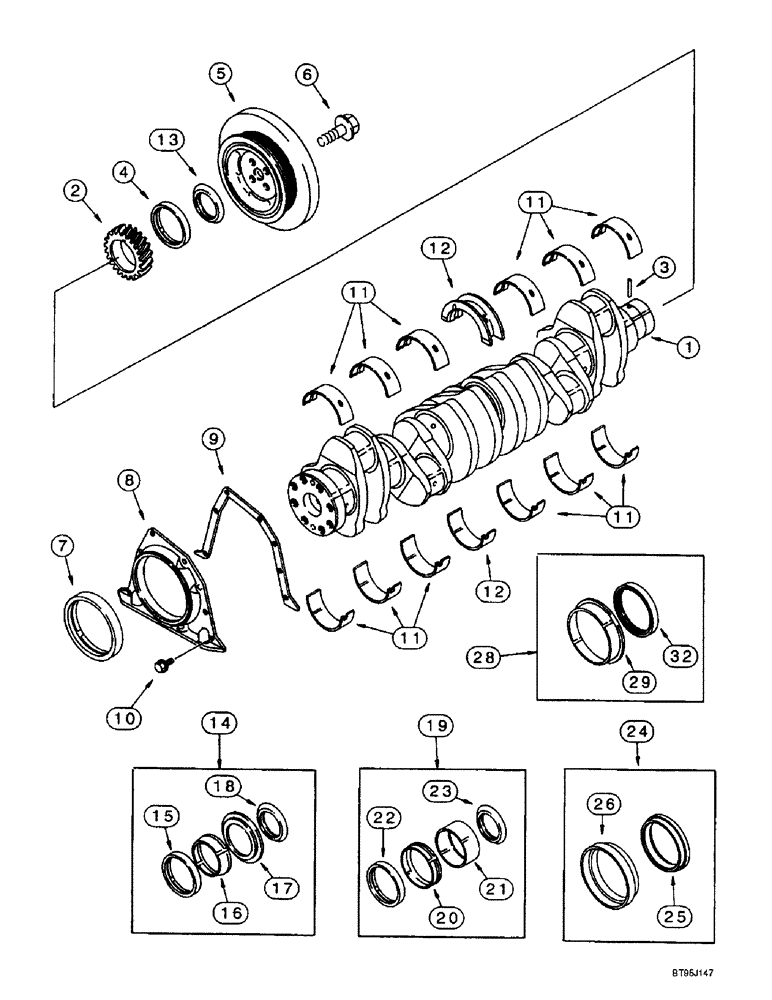

Запчасти Case IH 2188 (2-48) - CRANKSHAFT, 6TA-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINES (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 and 3

1шт.

JC918986

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J918986

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

2

J918776

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit A77790, Ref. 14

1шт.

5

J925568

DAMPER,246mm OD

PULLEY - crankshaft vibration damper

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order kit A77809, Ref. 24 on Figure 2-49A

1шт.

8

J921042

REAR COVER

RETAINER - seal, rear cover

1шт.

9

J914301

GASKET

- rear cover retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

A77711

BEARING LINER

BEARING - main, upper and lower set, standard

6шт.

11

A77712

BEARING LINER

BEARING - main, upper and lower set, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

BEARING - main, upper and lower set, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

BEARING - main, upper and lower set, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

BEARING - main, upper and lower set, 1.0 mm undersize

6шт.

12

A77843

BEARING LINER

BEARING - main thrust, upper and lower set, standard (Replaces bearing A77706)

1шт.

12

A77844

BEARING LINER

BEARING - main thrust, upper and lower set, 0.25 mm undersize (Replaces bearing A77707)

1шт.

12

A77845

BEARING LINER

BEARING - main thrust, upper and lower set, 0.50 mm undersize (Replaces bearing A77708)

1шт.

12

A77846

BEARING LINER

BEARING - main thrust, upper and lower set, 0.75 mm undersize (Replaces bearing A77709)

1шт.

12

A77847

BEARING LINER

BEARING - main thrust, upper and lower set, 1.0 mm undersize (Replaces bearing A77710)

1шт.

12

A77848

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard journal diameter, 0.25 mm oversize thrust width

1шт.

12

A77849

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard journal diameter, 0.50 mm oversize thrust width

1шт.

12

A77850

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize journal diameter, 0.50 mm oversize thrust width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal, order kit A77790, Ref. 14

1шт.

14

A77790

SEAL KIT

KIT - oil seal, crankshaft front, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

19

A77808

SERVICE KIT

KIT - wear sleeve, crankshaft front, if used, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

- dust

1шт.

24

A77809

GASKET KIT

KIT - oil seal, crankshaft rear, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

28

A77810

SERVICE KIT

KIT - wear sleeve, crankshaft rear, if used, Includes: Ref. 29 and 32

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.
