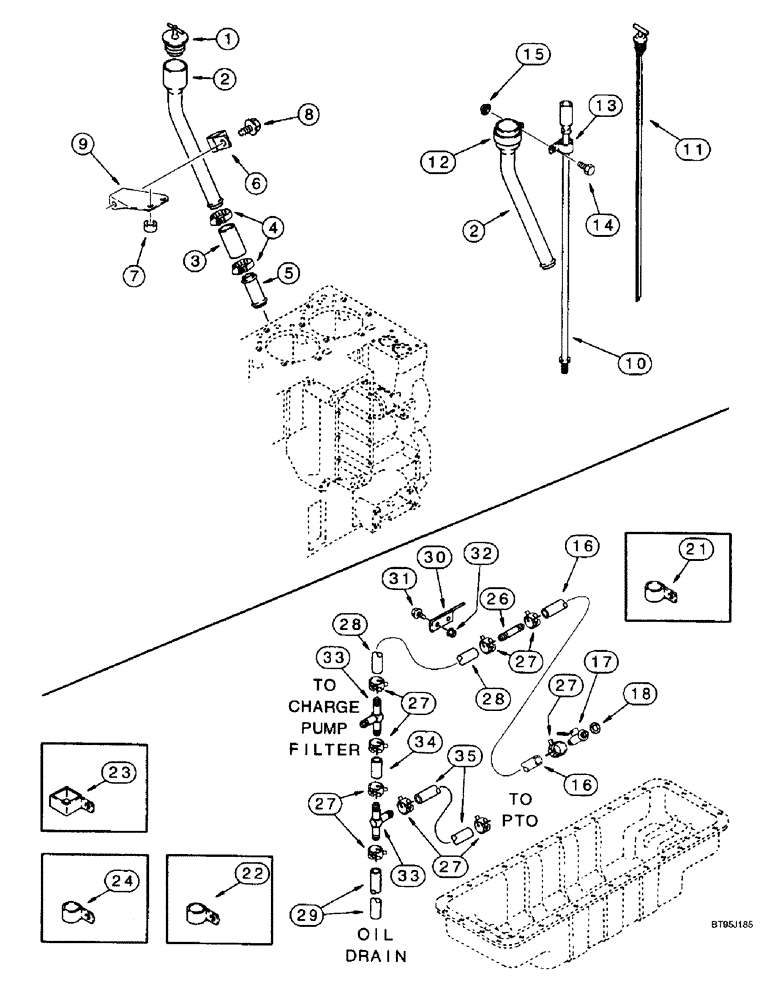

Запчасти Case IH 2188 (2-46) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK / OIL DRAIN SYSTEM (01) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

- oil fill, upper

1шт.

3

A77661

HOSE

- oil fill, 2-1/2 inch (65 mm) long

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

- oil fill, lower

1шт.

6

J914022

CLAMP

- P-type, filler tube retaining

1шт.

7

K627040

BUSHING

SPACER - 3/4 OD x 1/4 inch long

1шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

9

J914020

BRACKET

- support

1шт.

10

118880A1

TUBE,9.52 mm ID, 809 mm Length

- dipstick

1шт.

11

118790A1

DIPSTICK

- oil gauge

1шт.

12

118788A1

CLAMP

- dipstick support

1шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

16

1329978C3

HOSE

- oil drain, 18-1/8 inch (430 mm) long

1шт.

17

1330429C1

DRAIN VALVE

VALVE - oil drain

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

21

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Oil drain system 1 1/4", Insul, 3/8" Bolt

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Oil drain system 1 1/2", Insul, 3/8" Bolt

1шт.

23

1301387C2

CLIP

CLAMP - square, 2 inch ID, oil drain system

3шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type, Oil drain system 1 7/8", Insul, 1/2" Bolt

3шт.

26

1301342C1

FITTING

ADAPTER - straight, special, oil drain system

1шт.

27

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Oil drain system #24

13шт.

28

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Breather, Intermediate, Oil Drain System; Order 1977295C1, and Cut to Required Length; See Below 15.75 mm ID x 840.00 mm

1шт.

29

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

HOSE, , Breather, Lower, Cut From 1977295CX Bulk Hose Below, Oil Drain System 15.75 mm ID x 1550.00 mm

1шт.

30

1977212C1

BRACKET

- oil drain shield, oil drain system

1шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Oil drain system Hex Flg, 3/8"-16 x 1", Serr

2шт.

32

231-5146

FLANGE NUT,3/8"-16

Oil drain system Flg, USR, 3/8"-16

2шт.

33

1977169C1

TEE

- oil drain system

2шт.

34

1347070C2

HOSE,15.75 mm ID x 75.00 mm

- drain, 3 inch (75 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

35

1977294C3

HOSE

- PTO drain, 22-7/8 inch (580 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long, oil drain system

1шт.

1977295CX

LARGE HOSE

UAR hose, bulk, 5/8 (16) x 7/8 (22) x 600" (15240 mm) long, oil drain system

1шт.
