(2-43A) - CAMSHAFT, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER

Запчасти Case IH 2188 (2-43A) - CAMSHAFT, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE

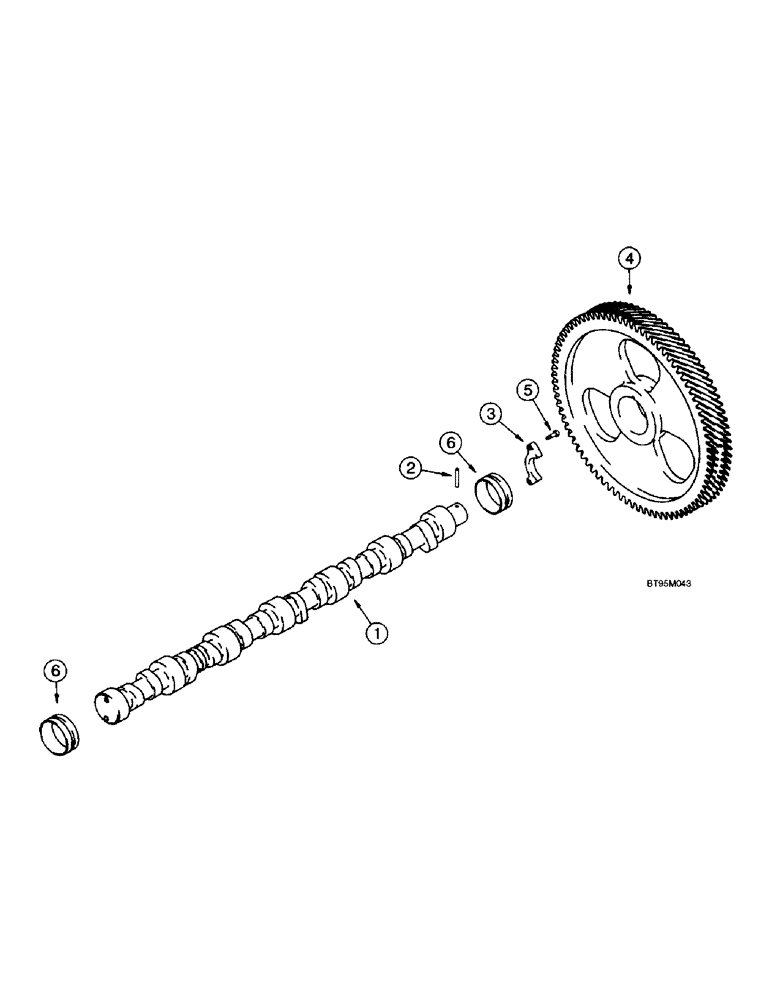

Схема запчастей Case IH 2188 - (2-43A) - CAMSHAFT, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE
3
1
4
5
6
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J920065

CAMSHAFT

ASSEMBLY - Engine, Includes Ref. 2

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J920065

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

- dowel, gear

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J918777

GEAR

- camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

- camshaft

7шт.
