(2-42) - CAMSHAFT, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483

Запчасти Case IH 2188 (2-42) - CAMSHAFT, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

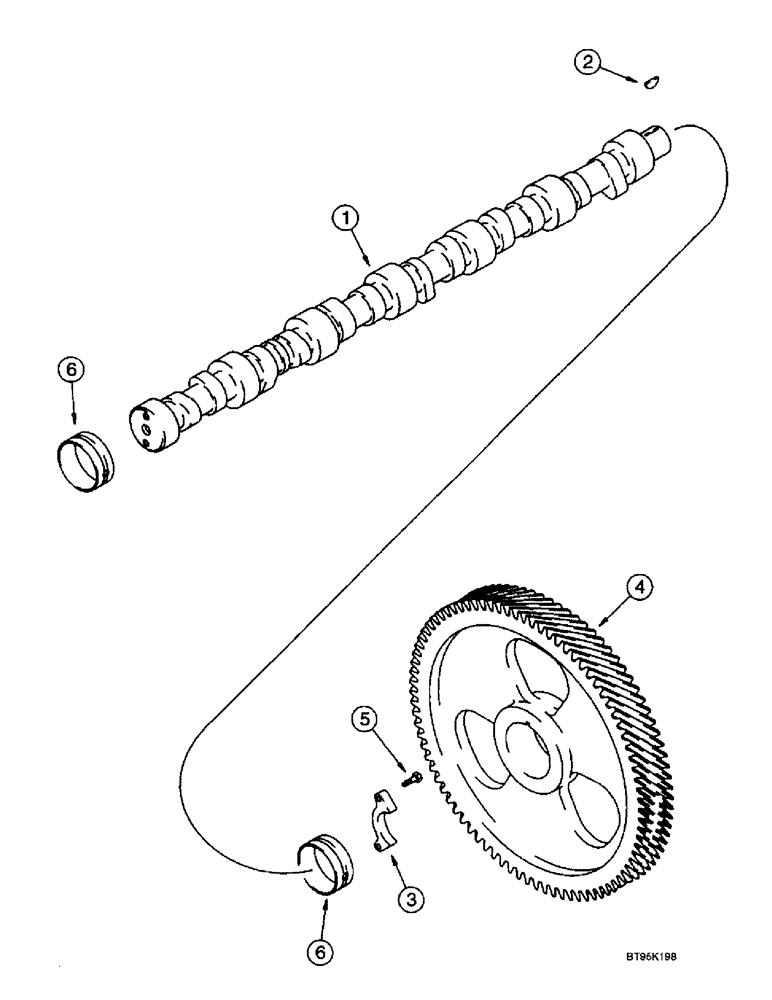

Схема запчастей Case IH 2188 - (2-42) - CAMSHAFT, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE
5
4
3
6
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924471

CAMSHAFT

- engine

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J924471

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J918777

GEAR

- camshaft (Replaces gear J917328)

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

- camshaft

7шт.
