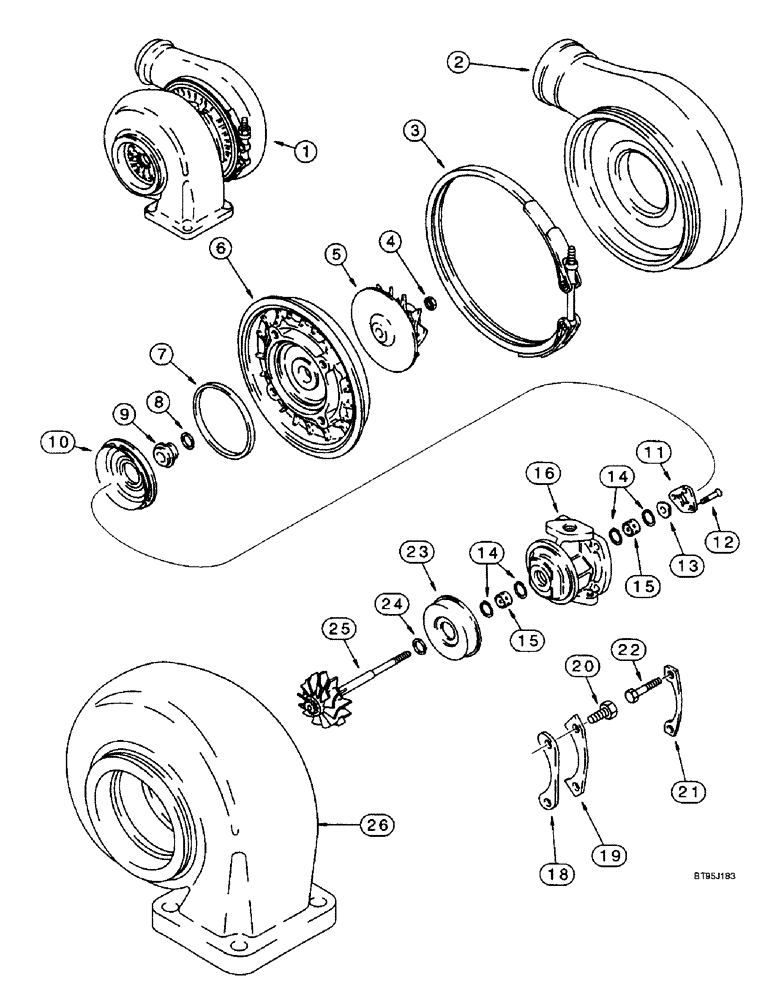

Запчасти Case IH 2188 (2-30) - TURBOCHARGER ASSEMBLY, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

1

J532065

TURBOCHARGER

ASSEMBLY - engine, new, Inlcudes: Ref. 1 - 28

1шт.

1

JR802416

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Inlcudes: Ref. 1 - 28

1шт.

1

JC802416

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly, Inlcudes: Ref. 1 - 28

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring, oil slinger

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - shaft, impeller

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex, retainer

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex, lock

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, not shown

8шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - sealing, not shown

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes Ref 4, 7, 8, 11, 12, 14, 15, 19, 20, 22, 24, 27 and 28, Replaces kit J904772

1шт.
