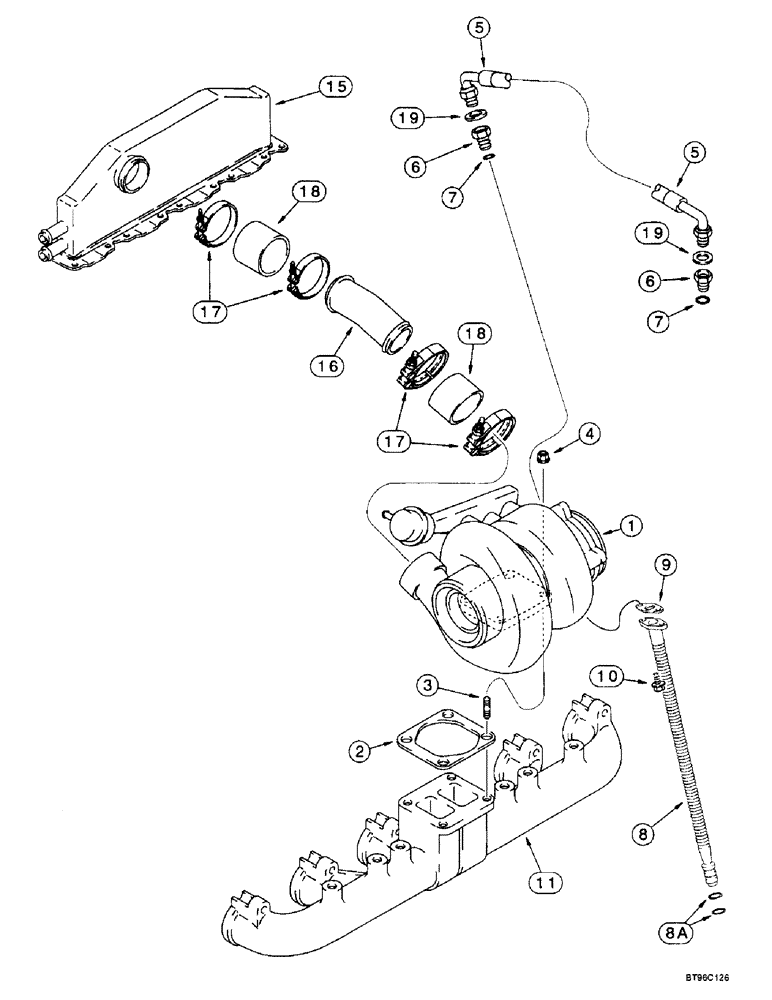

Запчасти Case IH 2188 (2-29A) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE

1

J535617

TURBOCHARGER

ASSEMBLY - engine, new, parts list Figure 2-31A

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J918562

HOSE

- oil supply, turbocharger, 21-3/16 inch (538 mm) long

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Inlcudes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

J928629

TUBE

ASSEMBLY - oil drain, flexible bend to fit, Inlcudes: Ref. 8A

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J819378

GASKET

- turbo oil drain

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J906741

MANIFOLD

- exhaust, see Figure 2-27A

1шт.

15

J924731

AFTERCOOLER

- air intake, see Figure 2-27A

1шт.

16

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, air

1шт.

17

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
