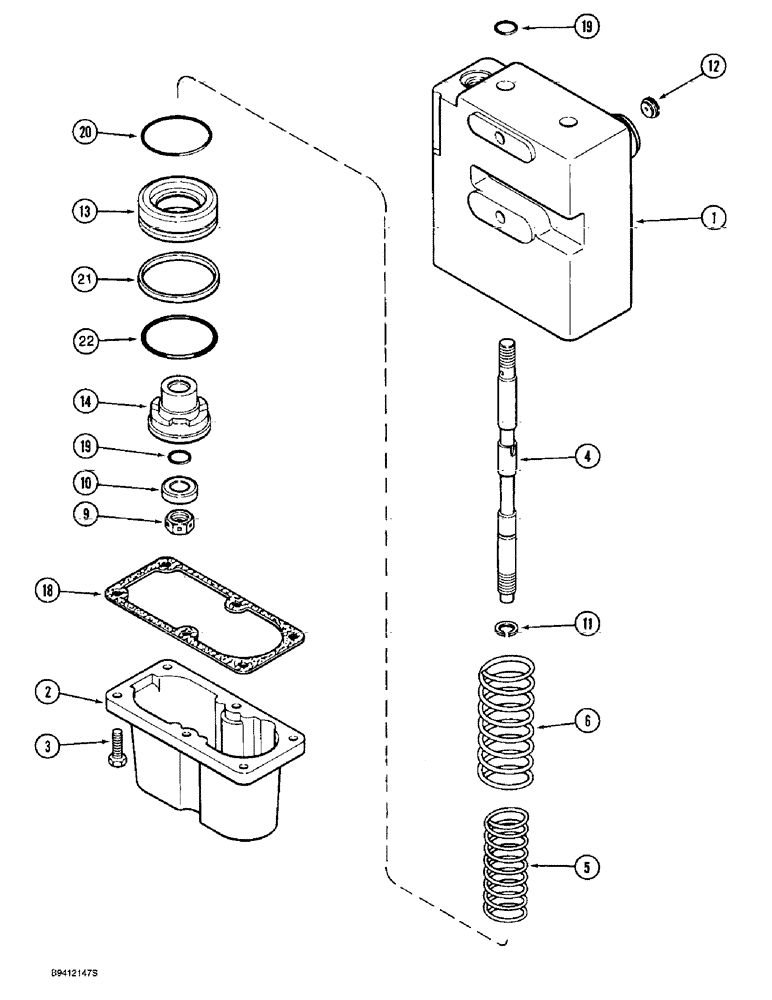

Запчасти Case IH 2188 (7-08) - MASTER BRAKE CONTROL VALVE ASSEMBLY (5.1) - BRAKES

137449A2

BRAKE VALVE

VALVE ASSEMBLY - master brake control, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 137449A2

1шт.

2

384495R1

CAP

- body

1шт.

3

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

6шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly 137449A2

2шт.

5

1263125C1

SPRING

- return

2шт.

6

1263124C1

SPRING

- piston, large

2шт.

9

9411648

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2 inch NF

2шт.

10

61958C1

AXLE PIN

PIN - headless

2шт.

11

A27020

RING

- retaining

2шт.

12

189144A1

DISC

PLATE - orifice

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - large, order valve assembly 137449A2

2шт.

14

NSS

NOT SOLD SEPARAT

PISTON - small, order valve assembly 137449A2

2шт.

71487C92

GASKET KIT

KIT - seal, Includes: Ref. 18 - 22

1шт.

18

384503R2

GASKET,0.38mm Thk

- body

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - spool

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

2шт.

21

1986769C1

BACK-UP RING

RING - slipper, order kit 71487C92

2шт.

22

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

- 2-1/16 ID x 3/32 inch wide

2шт.
